High-yield methods for purification of α-linolenic acid from Perilla frutescens var. japonica oil
Applied Biological Chemistry volume 59, pages 89–94 (2016)
Abstract
This study was conducted to investigate the purification methods for high-yield of α-linolenic acid (ALA) from Perilla frutescens var. japonica oil (PO). PO was treated with 2 g of urea, cooled for 24 h, and 81.75 % of ALA was obtained after gas chromatography–flame ionization detector analysis. Urea complexation at low temperature (refrigeration) is a prospective method for the extraction of unsaturated fatty acids in high yields. Our results suggest that urea treatment with cooling at 10 °C could be used for purification of ALA from PO. It will be enhanced for the development of nutritional, medical, and cosmetic value.
Introduction
Perilla frutescens is a member of the mint family (Lamiaceae) and an annual herbaceous plant. It is widely cultivated for use as sushi garnish, food supplements as well as in salad, pickles, and oil in China, Japan, and Korea (Nitta et al. 2003). The native origins of this plant are the terrains of India and China (Turchini et al. 2010) and in Korea, this plant is commonly known as “Dlggae.” Its leaves and stems are green, with no wrinkles, and it is taller than other Perilla species, with a unique flavor (Waldeck et al. 2010). Previous phytochemical investigations of P. frutescens involved the isolation of phenolic compounds, including caffeic acid–3-O-glucoside, rosmarinic acid–3-O-glucoside, rosmarinic acid, luteolin, and apigenin (Ha et al. 2013). P. frutescens is known to have anti-allergic, anti-inflammatory, and anti-oxidant activities. It has also been utilized as a therapeutic food for its anti-obesity properties and has shown favorable appropriate activities against human culture cells, such as HL-60, MCF-7, and Hep-G2 (Makino et al. 2003; Akihisa et al. 2006; Kim and Kim 2009; Hong et al. 2010; Ueda et al. 2002).
The oil of P. frutescens is consumed principally in India and East Asia and is used for cooking and in traditional therapy (Kurowska et al. 2003); it is also used as a traditional treatment modality for lung disease in China. This oil is rich in polyunsaturated fatty acid; however, the leaves are a poor source of oil with a yield of only 0.2 %. The seed oil contains omega-3 fatty acids, α-linolenic acid (ALA) and omega-6 fatty acids, γ-linolenic acid. In comparison to other plant oils, P. frutescens oil contains high levels of linolenic acid, oleic acid, and linoleic acid (Asif 2011). ALA, an essential fatty acid, has a long-chain structure and is a precursor of eicosapentaenoic acid and docosahexaenoic acid (Sinclair et al. 2002). ALA is abundant in vegetable oils, such as soy, canola, and walnut oils. In previous studies, ALA was used as a nutraceutical and pharmaceutical supplement (Kim et al. 2014) and found to have positive effects by having anti-inflammatory (Ren and Chung 2007), anti-thrombotic (Yang et al. 2014), anti-tumor (Numata 1995), improving the bone health (Kim and Ilich 2011), and preventing brain damage and stroke (Nguemeni et al. 2013). P. frutescens contains approximately 60 % ALA (Turchini et al. 2010).

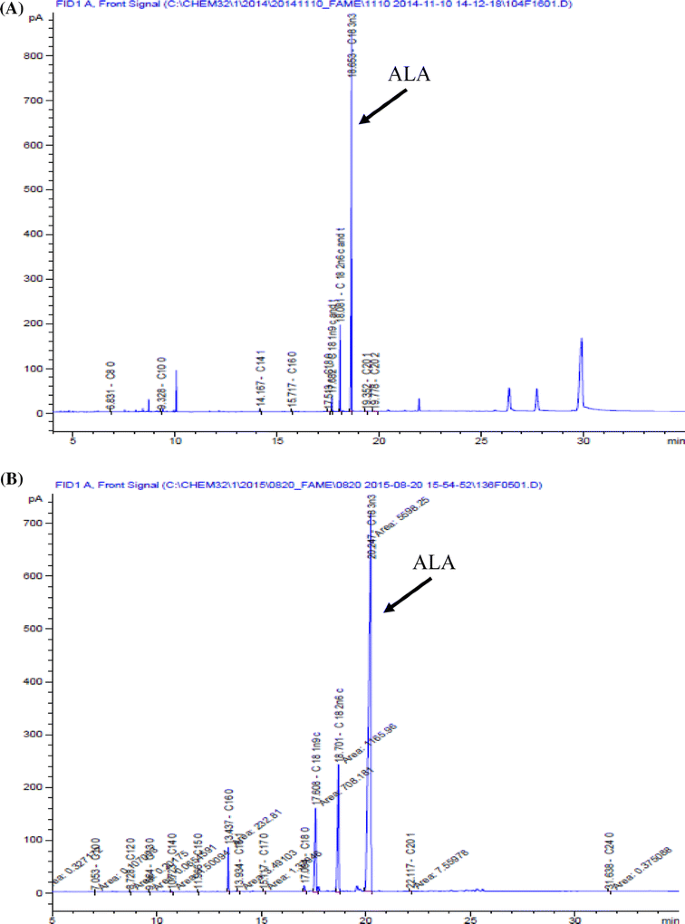

This study was conducted to investigate high-yield methods for the purification of ALA (Fig. 1) from P. frutescens var. japonica oil (PO) by gas chromatography–flame ionization detector (GC-FID).
Materials and methods
Plant materials
Perilla frutescens var. japonica (PF) was supported from the National Institute of Crop Science, Rural Development Administration, Miryang, Republic of Korea (2014). Voucher specimens of PF were deposited at the Herbarium of Department of Integrative Plant Science, Chung-Ang University, Korea.
Instruments and reagents
A medium pressure liquid chromatography (MPLC) was performed using a Biotage Isolera-one using a Biotage snap cartridge (KP-Sil; 100 g, Biotage, Sweden). Samples were analyzed using Agilent 7890A GC (Agilent, USA) equipped with a FID and DB-Wax column (Agilent, 30 mm × 0.25 mm × 0.25 μm). Reagents and solvents, including potassium hydroxide (KOH) and urea, were purchased from Junsei Chemicals Co., Ltd. (Japan). Hydrochloric acid (HCl) was purchased from Samchun Pure Chemicals Co., Ltd. (Korea). Sodium hydroxide (NaOH) and iodomethane were purchased from DaeJung Chemicals and Metals Co., Ltd. (Korea). Dimethyl sulfoxide (DMSO) was purchased from Wako Pure Chemicals Industries, Ltd. (Japan). PO and PF were kept in a FRS-300RWE refrigerator (Dongbu Daewoo Electronics, Korea) and WUF-500 deep freezer (Daihan Scientific Co., Ltd., Korea).
Preparation of PO and solvent fractions
The PF seeds were roasted at 170 °C for 10 min using an electric roasting machine (Dong Bang Machinery, Korea), and these roasted PF seeds were compressed into at 600 °C with an oil press machine, DB-500 (Dong Bang Machinery, Korea), and the collected PO was used. PO was separated by MPLC using n-hexane (isocratic: 100, v/v) which was to be used as the n-hexane layer. The PO was then separated by MPLC using CHCl3 (isocratic: 100, v/v) and CH2Cl2 (isocratic: 100, v/v) were to be used as CHCl3 and CH2Cl2 layers, respectively, after removing of n-hexane fraction. The collected n-hexane, CHCl3 and CH2Cl2 layers were concentrated and the final residue was used for this experiment.
Saponification and urea complexation treatment
PO and solvent layers (each 20 mL) were dissolved using MeOH (10 mL) mixed with KOH (2 g) and heated at 65–70 °C for 1 h until homogenous solution. The mixture solution (2 g) was dissolved using MeOH (10 mL) and subjected to urea treatment (2 g). The treated mixture was cooled at 10 °C in a refrigerator for 24 h and then, the treated mixture annexations were crystallized. The crystallized mixture annexations were removed by filtration, and the filtrate was acidified with HCl (pH 2–3). To the separated fatty acids, n-hexane (10 mL) and ethyl ether (5 mL) were added and stirred. After removing the residue by filtration, the filtrate was dried using anhydrous sodium sulfate and evaporated with nitrogen gas.
Urea complexation of PO (PU) with varying amounts of urea
Each solvent layer (n-hexane, CHCl3, and CH2Cl2) was treated with different amounts of urea (no treatment, 0.5, 1, 2, 4, and 8 g). The solvent fractions (n-hexane, CHCl3, and CH2Cl2) without any urea treatment were named PU-1, -7, and -13, respectively, and those treated with varying amounts of urea were named as follows: 0.5 g urea (PU-2, -8, and -14, respectively), 1 g urea (PU-3, -9, and -15, respectively), 2 g urea (PU-4, -10, and -16, respectively), 4 g urea (PU-5, -11, and -17, respectively), and 8 g urea (PU-6, -12, and -18, respectively).
Urea complexation of PO at different temperatures and time points (PT)
The samples of the CH2Cl2 layer treated with 2 g of urea were stored in a deep freezer, refrigerator, and room temperature for different periods of time (12, 24, 48, and 72 h).
Methylation for GC-FID
Iodomethane (0.1 mL) and ground NaOH (20 mg) were added to 0.5 mL DMSO with sample and then sonicated for 30 min at room temperature. Distilled water and CH2Cl2 were added and the non-polar phase was collected. Collected CH2Cl2 layer was evaporated under nitrogen gas (Ciucanu and Kerek 1984; Asres and Perreault 1997) and then the fatty acid methyl ester (FAME) was synthesized.
GC conditions
One microliter (spilt ratio 20) of FAME was injected via an Agilent 7890A autosampler (Agilent, USA) at 250 °C into the DB-Wax column (Agilent, 30 mm × 0.25 mm × 0.25 μm) in an Agilent 7890A (Agilent, USA) equipped with a FID. The column temperature was set at 50 °C for 1 min. The analysis was initiated at 200 °C and increased at a rate of 25 °C/min for 5 min. The column was set and then again started at 230 °C and increased at a rate of 3 °C/min for 20 min. Injector and ion source temperature were set at 250 and 200 °C, respectively. The detailed conditions were shown in Table 1.
Results and discussion
This study was conducted to investigate the purification methods used to obtain high levels of ALA from PO by urea treatment. Urea treatment of saturated fatty acids formed urea inclusion complexes by reducing the saturation degree of fatty acids (Hayes et al. 1998; Lee et al. 2014). Urea complexation efficiently reduced the saturation degree of fatty acids, yielding unsaturated fatty acids (Swern and Parker 1952; Swern 1955). This is a common method for the separation of a mixture of fatty acids, ALA and linoleic acid (Lee et al. 2011). This method was used for other materials such as fungal lipids (Arjuna 2013), liver oil from dog fish (Stefanov et al. 1997), tuna (Suriani et al. 2014), pine nut oil (No et al. 2015), and soybean oil (Hasnisa and Jumat 2014). The amount of omega-3 fatty acids in tuna increased 2.70-fold with urea treatment (Suriani et al. 2014).
We investigated the optimum amount of urea treatment for each solvent layer (n-hexane, CHCl3, and CH2Cl2). The amounts of ALA varied based on the amounts of urea used for treatment (no treatment, 0.5, 1, 2, 4, and 8 g; Table 2). Of the treated solvent fractions, PU-16 (PO eluted with CH2Cl2 using 2 g urea) had the highest amount of ALA (81.75 %). Figure 2 shows GC chromatograms of ALA in PU-4, -10, and -16. Generally, treatment with 2 g urea (PU-4, -10, and -16) resulted in the highest ALA yield. Treatment with 2 g urea at complexation temperature and time were conducted (Table 3). The amount of ALA in the refrigerated sample (PT-6) was the highest at a complexation time of 24 h (72.03 %). Figure 2 shows GC chromatograms of ALA in PT-6. This result indicates that 2 g urea treatment and 24 h refrigeration are favorable condition to obtain the highest amount of ALA.
To separate unsaturated fatty acids, gradient cooling methods for Perilla oils (Gu et al. 2009), lipase-mediated hydrolysis of flax seeds (Rupani et al. 2012), and column chromatography and urea complexation for Lithospermum erythrorhizon (Han et al. 2004) were used. Gu et al. (2009) suggested that the method of cooling urea inclusion could be used for purifying linoleic acid. Urea complexation conducted repeatedly with corn, Perilla, and linseed oils showed that 89 % of ALA was obtained from Perilla (Swern and Parker 1953). The concentration of ALA and linoleic acid focused on alkaline-isomerization reaction time and concentration of NaOH (Lee et al. 2011).
In addition to urea complexation, other methods used for omega-3 fatty acid separation include the distillation method, low temperature crystallization, lipase-catalyzed hydrolysis, and supercritical fluid extraction (Kapoor and Patil 2011). Among them, the distillation method with different boiling points is used for isolation of substances from a fatty acid mixture (Lopes et al. 2009). In low temperature crystallization, solubilization is used to purify fatty acids, esters, and lipids (Brown and Kolb 1955). Urea complexation can not only be used in food industry but also in the field of energy resources such as biodiesel. Urea complexation is used to improve the cold flow and reduce the cold filter plugging point of biodiesel. This method reduced the amount of saturated fatty acids and improved the cold filter plugging point of biodiesel (Lee et al. 2012).
In conclusion, urea complexation at low temperature (refrigeration) is a prospective method for the extraction of unsaturated fatty acids in high yields. Application of urea complexation method for PO eluted with CH2Cl2 yields large amount of ALA for use in the field of cosmetics and pharmaceutical food supplements.
References
Akihisa T, Kamo S, Uchiyama T, Akazawa H, Banno N, Taguchi Y, Yasukawa K (2006) Cytotoxic activity of Perilla frutescens var. japonica leaf extract is due to high concentrations of oleanolic and ursolic acids. J Nat Med 60:331–333
Arjuna A (2013) Enrichment of Gamma linolenic acid from the fungal lipids. Int J Sci Res Publ 3:1–2
Asif M (2011) Health effects of omega-3,6,9 fatty acids: Perilla frutescens is a good example of plant oils. Orient Pharm Exp Med 11:51–59
Asres DD, Perreault H (1997) Monosaccharide permethylation products for gas chromatography–mass spectrometry: how reaction conditions can influence isomeric ratios. Can J Chem 75:1385–1392
Brown LB, Kolb DX (1955) Application of low temperature crystallization in separation of fatty acids and their compounds. Prog Lipid Res 3:57–94
Ciucanu I, Kerek F (1984) A simple and rapid method for the permethylation of carbohydrates. Carbohydr Res 131:209–217
Gu HB, Ma XY, Zhang Q, Yuan WB, Chen YP (2009) Concentration of α-linolenic acid of Perilla oil by gradient cooling urea inclusion. Agric Sci China 9:685–690
Ha TJ, Lee JH, Lee MH, Lee BW, Kwon HS, Park CH, Shim KB, Kim HT, Baek IY, Jang DS (2013) Isolation and identification of phenolic compounds from the seeds of Perilla frutescens (L.) and their inhibitory activities against α-glucosidase and aldose reductase. Food Chem 136:843–852
Han XJ, Xu P, Meng XL, Liang ZH, Yang ZC (2004) Preparation of high-purity linolenic acid from oil of Lithospermum erythrorhizon by urea inclusion and column chromatography. J Chin Pharm Sci 13:53–57
Hasnisa H, Jumat S (2014) Preparation of concentrated polyunsaturated fatty acid (PUFA) from soybean oil. J Trop Agric Food Sci 42:149–155
Hayes DG, Bengtsson YC, Van Alstine JM, Setterwall F (1998) Urea complexation for the rapid, ecologically responsible fractionation of fatty acids from seed oil. J Am Oil Chem Soc 75:1403–1409
Hong EY, Park KH, Kim GH (2010) Phenolic-enriched fractions from Perilla frutescens var. acuta: determinating rosmarinic acid and antioxidant activity. J Food Biochem 35:1637–1645
Kapoor R, Patil UK (2011) Importance and production of omega-3 fatty acids from natural sources. Int Food Res J 18:493–499
Kim Y, Ilich JZ (2011) Implications of dietary α-linolenic acid in bone health. Nutrition 27:1101–1107
Kim MJ, Kim HK (2009) Perilla leaf extract ameliorates obesity and dyslipidemia induced by high-fat diet. Phytother Res 23:1685–1690
Kim KB, Nam YA, Kim HS, Hayes AW, Lee BM (2014) α-Linolenic acid: nutraceutical, pharmacological and toxicological evaluation. Food Chem Toxicol 70:63–78
Kurowska EM, Dresser GK, Deutsch L, Vachon D, Khalil W (2003) Bioavailability of omega-3 essential fatty acids from Perilla seed oil. Prostaglandins Leukot Essent Fatty Acids 68:207–212
Lee KS, Shin JA, Lee KT (2011) Preparation of conjugated linoleic acid from urea fractionated Perilla seed oil hydrolysate. J Korean Soc Food Sci Nutr 40:1734–1742
Lee YH, Shin JA, Hua Z, Lee KT, Kim KS, Jang YS, Park KG (2012) Improvement of low temperature property of biodiesel from palm oil and beef tallow via urea complexation. Renew Energy 4:38–43
Lee YH, Kim KS, Jang YS, Shin JA, Lee KT, Choi IH (2014) Improvement of low-temperature fluidity of biodiesel from vegetable oils and animal fats using urea for reduction of total saturated FAME. J Korean Oil Chem Soc 31:113–119
Lopes MS, Winter A, Wolf-Maciel MR, Batistella CB, Maciel Filho R, Medina LC (2009) Simulated distillation of fractions of petroleum distillates by molecular distillation. Chem Eng Trans 17:1615–1620
Makino T, Furuta Y, Wakushima H, Fujii H, Saito K, Kano Y (2003) Anti-allergic effect of Perilla frutescens and its active constituents. Phytother Res 17:240–243
Nguemeni C, Gouix E, Bourourou M, Heurteaux C, Blondeau N (2013) Alpha-linolenic acid: a promising nutraceutical for the prevention of stroke. Pharmanutrition 1:1–8
Nitta M, Lee JK, Ohnishi O (2003) Asian Perilla crops and their weedy forms: their cultivation, utilization and genetic relationships. Econ Bot 57:245–253
No DS, Zhao TT, Kim YH, Yoon MR, Lee JS, Kim IH (2015) Preparation of highly purified pinolenic acid from pine nut oil using a combination of enzymatic esterification and urea complexation. Food Chem 170:386–393
Numata M (1995) Antitumor effects of alpha-linolenic acid on the human tumor transplanted in nude mice and on the metastasis of Vx-7 tumor in rabbit. Hokkaido Igaku Zasshi 70:183–193
Ren J, Chung SH (2007) Anti-inflammatory effect of α-linolenic acid and its mode of action through the inhibition of nitric oxide production and inducible nitric oxide synthase gene expression via NF-κB and mitogen-activated protein kinase pathways. J Agric Food Chem 55:5073–5080
Rupani B, Kodam K, Gadre R, Najafpour GD (2012) Lipase-mediated hydrolysis of flax seed oil for selective enrichment of α-linolenic acid. Eur J Lipid Sci Technol 114:246–253
Sinclair AJ, Attar-Bashi NM, Li D (2002) What is the role of α-linolenic acid for mammals? Lipids 37:1113–1123
Stefanov K, Seizova K, Georgieva G, Zlatanova S, Kuleva L, Popov S (1997) Preparation of polyunsaturated fatty acid concentrates from the liver oil of dog fish (Squalus acanthias) from the black sea. Grasas Aceites 48:141–143
Suriani NW, Lawalata HJ, Komansilan A (2014) Urea crystallization on the concentrate making of omega-3 fatty acid from oil of tuna fish (Thunnus sp.) canning byproduct. Int J PharmTech Res 6:1981–1990
Swern D (1955) Urea and thiourea complexes in separating organic compounds. Ind Eng Chem 47:216–221
Swern D, Parker WE (1952) Application of urea complexes in the purification of fatty acids, esters, and alcohols. I. Oleic acid from inedible animal fats. J Am Oil Chem Soc 29:431–434
Swern D, Parker WE (1953) Application of urea complexes in the purification of fatty acids, esters, and alcohols. III. Concentrates of natural linoleic and linolenic acids. J Am Oil Chem Soc 30:5–7
Turchini GM, Ng WK, Tocher DR (2010) Fish oil replacement and alternative lipid sources in aquaculture feeds. CRC Press, Boca Raton, p 213
Ueda H, Yamazaki C, Yamazaki M (2002) Luteolin as an anti-inflammatory and anti-allergic constituent of Perilla frutescens. Biol Pharm Bull 25:1197–1202
Waldeck FM, Sitzmann J, Schnitzlerf WH, Grasmann J (2010) Determination of toxic Perilla ketone, secondary plant metabolites and antioxidative capacity in five Perilla frutescens L. varieties. Food Chem Toxicol 48:264–270
Yang Q, Cao W, Zhou X, Cao W, Xie Y, Wang S (2014) Anti-thrombotic effects of α-linolenic acid isolated from Zanthoxylum bungeanum Maxim seeds. BMC Complement Altern Med 14:348–355
Acknowledgments
This work was supported by Grants from Cooperative Research Program for Agriculture Science and Technology Development (Project No. PJ010156022014), Rural Development Administration, Republic of Korea. We thank the National Center for Inter-University Research Facilities (Seoul National University, Republic of Korea) for the measurement of spectroscopic data.
