Biotransformation of quercetin to quercetin 3-O-gentiobioside using engineered Escherichia coli
Applied Biological Chemistry volume 59, pages 689–693 (2016)
Abstract
Various flavonoid O-diglycosides are found in nature but the biological activities of only a few compounds have been explored due to difficulty in obtaining samples. In order to circumvent the need for extraction and purification of the natural compounds from plants, we used engineered Escherichia coli strain that harbors two uridine diphosphate-dependent glycosyltransferases (UGTs; BcGT1 and CaUGT) and two nucleotide sugar biosynthetic genes (pgm and galU). Using this strain, we synthesized quercetin 3-O-gentiobioside. After optimization of induction temperature, cell density, and reaction temperature, approximately 46.2 mg/L quercetin 3-O-gentiobioside was synthesized from quercetin with 49 % conversion efficiency.
Introduction
One of phytochemicals, flavonoid, has roles in pigmentation, UV-B protection, auxin transport, and signaling for interaction with microorganisms in plants (Iwashina 2003). Flavonoids exist not only as aglycones but as glycones. Glycosylation reactions occur after synthesis of flavonoids by uridine diphosphate-dependent glycosyltransferases (UGTs). Sugars are attached to the flavonoids, which increases the diversity of flavonoids (Vogt and Jones 2000).
Flavonoid O-monoglycosides are the most prevalent forms. Flavonoid O-biglycosides and flavonoid O-diglycosides are found. For example, quercetin 3-O-glucose 7-O-rhamnose and kaempferol 3-O-glucose 7-O-rhamnose were found in Arabidopsis thaliana (Jones et al. 2003). Neohesperidin (hesperetin 7-O-glucose (1 → 2) rhamnose), naringin (naringenin 7-O-glucose (1 → 2) rhamnose), hesperidin (hesperetin 7-O-rhamnose (1 → 6) glucose), and narirutin (naringenin 7-O-rhamnose (1 → 6) glucose) were found in citrus (Peterson et al. 2006a, b; Rousseff et al. 1987). Thus, flavonoid O-diglycosides have a role in determining the taste of fruits (Frydman et al. 2004). Quercetin 3-O-gentiobioside was found in Catharanthus roseus and the corresponding gene was cloned (Masada et al. 2009). Although various flavonoid O-diglycosides were found, the biological activities of only a few compounds such as rutin (quercetin 3-O-glucosyl (1 → 6) rhamnoside) have been explored due to the difficulty in obtaining samples (La Casa et al. 2000; Guardia et al. 2001; Sheu et al. 2004). In order to circumvent the need for extraction and purification of the natural compounds from plants, microbial production of natural products is an emerging field (Jeandet et al. 2013; Zhou et al. 2015). We reported here the biological synthesis of quercetin 3-O-gentiobioside (glucose (1 → 2) glucose) using engineered E. coli.
Materials and methods
Constructs
In order to clone CaUGT from C. roseus (GenBank accession number AB443870), cDNA was synthesized using the whole plant as described previously (Kim et al. 2012) and polymerase chain reaction (PCR) was carried out. The primers were 5′-AAgtcgacATGGCCACAGAACAACAACA-3′ (the lower case letters indicate a SalI site) and 5′-AAgcggccgcTCACACACACAGCTGCTTCA-3′ (the lower case letters indicate a NotI site). The gene pgm (phosphoglucomutase; Gene ID 945271) and galU (uridine triphosphate alpha-d-glucose-1-phosphate uridylyltransferase; Gene ID 945730) from E. coli were cloned by PCR. The primers for galU were 5′-AAgaattcATGGCTGCCATTAATACGAAAG-3′ (the lower case letters indicate an EcoRI site.) and 5′-AAgcggccgcTTACTTCTTAATGCCCATCTCTTC-3′ (the lower case letters indicate a NotI site.). The primers for pgm were 5′-ATGcatatgGCAATCCACAATCGTGCAGGC-3′ (the lower case letters indicate a NdeI site.) and 5′-CATctcgagGTTACGCGTTTTTCAGAACTTC-3′ (the lower case letters indicate an XhoI site.). All PCR products were sequenced. CaUGT was cloned into the SalI/NotI sites of pGEX5X-3 (GE Healthcare Life Sciences, Pittsburgh, PA, USA; pG-CaUGT). pgm and galU were cloned into pCDFDuet-1 vector (Novagen; pC-pgm-galU). The strain B-BcGT1 was constructed previously (An et al. 2016).
Synthesis of quercetin 3-O-gentiobioside using E. coli
Escherichia coli strain B-BcGT1 was transformed with pG-CaUGT and pCDF (strain B-QGB1) or pG-CaUGT and pC-pgm-galU (strain B-QGB2). The production of quercetin 3-O-gentiobioside in the E. coli transformant was compared. Each transformant was grown into Luria–Bertani (LB) medium containing 50 µg/mL spectinomycin and 50 µg/mL of ampicillin. Cells were inoculated into a fresh medium and grown until the optical density at 600 nm (OD600) reached 1.0 at which point the proteins were induced by adding isopropyl β-d-1-thiogalactopyranoside (IPTG) to the culture at a final concentration of 1 mM. Culture was incubated for 24 h at 18 °C. After collection of cells, the cell concentration was adjusted to an OD600 of 1.0 with 2 mL of M9 medium supplemented with 2 % glucose, 50 µg/mL spectinomycin, and 50 µg/mL ampicillin. Quercetin [50 μM; dissolved in dimethyl sulfoxide (DMSO)] was also added, and the culture was incubated at 30 °C with shaking for 7 h. The culture supernatant was boiled for 3 min and centrifuged for 15 min. The supernatant was analyzed by HPLC (Yoon et al. 2012).
To measure the production of quercetin 3-O-gentiobioside, E. coli strain B-QGB2 was grown as described above. The cells were resuspended in M9 with an optical density of OD600 = 3. Quercetin (50 μM) was added to the culture at 0, 10, and 18 h (for a final concentration of 150 μM). Samples were periodically harvested and the supernatant was analyzed by HPLC.
The reaction product was purified as described in An et al. (2016) and its structure was determined using NMR spectroscopy (Yoon et al. 2012). 1H NMR (MeOD-d 4 ) δ ppm 3.01 (m, H-5‴), 3.06 (dd, J = 7.7, 9.3 Hz, H-2‴), 3.17 (t, J = 8.9 Hz, H-3‴), 3.19 (t, J = 9.0 Hz, H-4‴), 3.38 (m, H-4″), 3.39 (m, H-5″), 3.42 (m, H-3″), 3.50 (dd, J = 7.6, 9.1 Hz, H-2″), 3.56 (dd, J = 5.4, 12.1 Hz, H-6‴), 3.67 (dd, J = 5.5, 12.0 Hz, H-6″), 3.75 (dd, J = 2.1, 12.1 Hz, H-6‴), 3.98 (dd, J = 1.6, 12.0 Hz, H-6″), 4.15 (d, J = 7.6 Hz, H-1‴), 5.20 (d, J = 7.6 Hz, H-1″), 6.18 (d, J = 2.1 Hz, H-6), 6.38 (d, J = 2.1 Hz, H-8), 6.87 (d, J = 8.4 Hz, H-5′), 7.66 (dd, J = 2.2, 8.4 Hz, H-6′), 7.70 (d, J = 2.2 Hz, H-2′); 13C NMR δ ppm 62.9 (C-6‴), 69.9 (C-6″), 71.6 (C-4″), 71.7 (C-4‴), 75.4 (C-2‴), 76.1 (C-2″), 77.9 (C-5‴), 78.0 (C-3‴), 78.2 (C-5″), 78.3 (C-3″), 95.2 (C-8), 100.4 (C-6), 104.3 (C-1″), 104.9 (C-1‴), 116.3 (C-5′), 117.7 (C-2′), 123.8 (C-6′).
Results and discussion

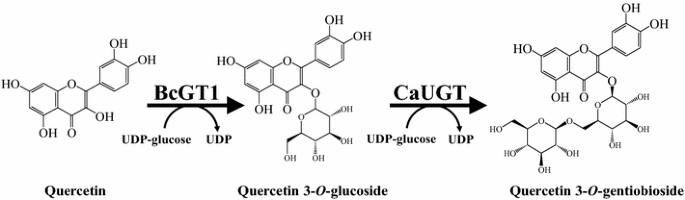

Quercetin 3-O-gentiobioside has two molecules of glucose. It is synthesized from quercetin by two sequential glucosylation catalyzed by two UGTs (Fig. 1). The first reaction is the synthesis of quercetin 3-O-glucoside from quercetin, which is mediated by BcGT1 (Ko et al. 2006). The second reaction, which is catalyzed by CaUGT, is the synthesis of quercetin 3-O-gentiobioside from the first reaction product. BcGT1 is needed to be retained as a low copy number as possible because the conversion rate of quercetin into quercetin 3-O-glucoside is fast, which resulted in the accumulation of quercetin 3-O-glucoside without conversion of it into quercetin 3-O-gentiobioside. Therefore, we used E. coli strain B-BcGT1, in which BcGT1 was integrated into its chromosome. B-BcGT1 harboring pG-CaUGT was used for the production of quercetin 3-O-gentiobioside. Figure 2 shows a new peak with a molecular mass of 625.8 Da, which was the predicted molecular mass of quercetin 3-O-gentiobioside. In addition, we determined the structure of this product using NMR. All 19 1H signals were observed. Among the 19 signals, five signals were shown in the aromatic region, meaning that these signals are coming from quercetin. Two peaks at 5.20 and 4.15 ppm indicate that two glucose molecules are present. The remaining 1H peaks were assigned using the COSY spectrum. The connection between the two glucose molecules was confirmed using NOESY experiments. Because a cross peak between 3.67 ppm (H-6 of 3-Glc) and 4.15 ppm (H-1 of 6″-Glc) was observed, the two glucose molecules were linked with 1 → 6 glucoside bond. In addition, both H-1 signals of glucose were connected with H-3 and H-5 in the NOESY spectrum indicating α-glucose. Therefore, we concluded that the structure of the reaction product is quercetin 3-O-gentiobioside.
In order to synthesize quercetin 3-O-gentiobioside, UDP-glucose was used as a glucose donor. UDP-glucose is synthesized from UTP and glucose 1-phosphate by ugd in E. coli. Glucose 1-phosphate is synthesized from glucose 6-phosphate by the action of pgm. It is known that the overexpression of pgm and galU increased UDP-glucose in E. coli (Mao et al. 2006). We overexpressed two genes, pgm and galU, in E. coli harboring pG-CaUGT. E. coli transformants supplemented with 50 μM quercetin were grown at 30 °C for 7 h. E. coli harboring pG-CaUGT and pC-pgm-galU (B-QGB2; 6.2 mg/L) produced more quercetin 3-O-gentiobioside than E. coli harboring only pG-CaUGT (B-QGB1; 4.2 mg/L). This suggested that the pool of UDP-glucose had an influence on the production of quercetin 3-O-gentiobioside.
We tested the effect of the induction temperature, initial cell density, and reaction temperature on the production of quercetin 3-O-gentiobioside using B-QGB2. Two different temperatures (18 and 30 °C) were tested to determine the better induction temperature. After induction at the two different temperatures for 24 h, equal amounts of cells were used to measure the synthesis of 3-O-gentiobioside at 30 °C. The cells (6.2 mg/L) in which protein expression was induced at 18 °C produced more quercetin 3-O-gentiobioside than those induced at 30 °C (4.0 mg/L). Although CaUGT was synthesized at higher levels at 30 °C than at 18 °C, the soluble form was synthesized more efficiently at 18 °C. We then tested the optimal cell density for the production of quercetin 3-O-gentiobioside. After induction at 18 °C, B-QGB2 cell density was adjusted to OD600 of 0.5, 1, 2, 3, and 4, and the E. coli was incubated at 30 °C for 7 h. The production of quercetin 3-O-gentiobioside increased until an OD600 of 3 (from 0.6 mg/L at OD600 = 0.5, 3.5 mg/L at OD600 = 1, 5.5 mg/L at OD600 = 2, and 6.2 mg/L at OD600 = 3). However, at an OD600 of 4, the production decreased to 4.4 mg/L, which was lower than that from a cell density of OD600 = 2. Next, we tested the reaction temperature. Using the optimized induction time and the cell density for B-QGB2, cells supplemented with 50 μM quercetin were incubated at 18, 25, and 30 °C for 7 h. More quercetin 3-O-gentiobioside was produced in cells grown at 18 °C (9.5 mg/L) than at 25 (7.0 mg/L) or 30 °C (6.2 mg/L).
Using the optimized production conditions, we carried out the biotransformation of quercetin into quercetin 3-O-gentiobioside. Quercetin (50 μM) was added at 0, 10, and 18 h (to a final concentration of 150 μM) because a higher initial concentration seemed to inhibit the synthesis of quercetin 3-O-gentiobioside. Both quercetin 3-O-glucoside and quercetin 3-O-gentiobioside were produced from the beginning of induction (Fig. 3). The production of quercetin 3-O-gentiobioside continued to increase until 33 h, after which it did not significantly increase. The final yield of quercetin 3-O-gentiobioside was approximately 46. 2 mg/L (73.8 μM), and 19.8 mg/L (42.5 μM) of quercetin 3-O-glucoside was produced. Approximately 77 % of the quercetin was converted into quercetin 3-O-glucoside and quercetin 3-O-gentiobioside. The conversion of quercetin into quercetin 3-O-gentiobioside was approximately 49 %.

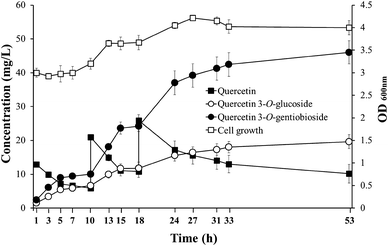

Production of quercetin 3-O-gentiobioside using E. coli strain B-QGB2. After induction at 18 °C for 24 h, the cell density was adjusted to an OD600 of 3.0 with M9 containing 1 % yeast extract, 2 % glucose, and 50 µg/mL antibiotics. Quercetin (50 μM) was added at 0, 10, and 18 h (indicated by arrows). The culture was incubated at 18 °C. Samples were harvested and analyzed by HPLC
Using two UGTs and two nucleotide sugar biosynthesis genes, we could synthesize quercetin 3-O-gentiobioside. This compound has been found in some plants (Yan et al. 2014; Ishihara et al. 2016) due to the development of devices. However, the biological activities of this compound have not been explored extensively due to its unavailability. Therefore, the approach used in this study could supply quercetin 3-O-gentiobioside to study its biological activities. The approach used in this study could be applied to synthesize diverse flavonoid O-diglycosides and a novel biological activity of these compounds can be detected.
References
An DG, Yang SM, Kim BG, Ahn J-H (2016) Biosynthesis of two quercetin O-diglycosides in Escherichia coli. J Ind Microbiol Biotechnol 43:841–849
Frydman A, Weisshaus O, Bar-Peled M, Huhman DV, Sumner LW, Marin FR, Lewinsohn E, Fluhr R, Gressel J, Eyal Y (2004) Citrus fruit bitter flavors: isolation and functional characterization of the gene Cm1,2RhaT encoding a 1,2 rhamnosyltransferase, a key enzyme in the biosynthesis of the bitter flavonoids of citrus. Plant J 40:88–100
Guardia T, Rotelli AE, Juarez AO, Pelzer LE (2001) Anti-inflammatory properties of plant flavonoids. Effects of rutin, quercetin and hesperidin on adjuvant arthritis in rat. Farmaco 56:683–687
Ishihara H, Tohge T, Viehöver P, Fernie AR, Weisshaar B, Stracke R (2016) Natural variation in flavonol accumulation in Arabidopsis is determined by the flavonol glucosyltransferase BGLU6. J Exp Bot 67:1505–1517
Iwashina T (2003) Flavonoid function and activity to plants and other organisms. Biol Sci Space 17:24–44
Jeandet P, Vasserot Y, Chastang T, Courot E (2013) Engineering microbial cells for the biosynthesis of natural compounds of pharmaceutical significance. BioMed Res Int 2013:13
Jones P, Messner B, Nakajima J-I, Schäffner AR, Saito K (2003) UGT73C6 and UGT78D1, glycosyltransferases involved in flavonol glycoside biosynthesis in Arabidopsis thaliana. J Biol Chem 278:43910–43918
Kim B-G, Sung SH, Ahn J-H (2012) Biological synthesis of quercetin 3-O-N-acetylglucosamine conjugate using engineered Escherichia coli expressing UGT78D2. Appl Microbiol Biotechnol 93:2447–2453
Ko JH, Kim BG, Ahn J-H (2006) Glycosylation of flavonoids with a glycosyltransferase from Bacillus cereus. FEMS Microbiol Lett 258:263–268
La Casa C, Villegas I, de la Lastra CA, Motilva V, Martín Calero MJ (2000) Evidence for protective and antioxidant properties of rutin, a natural flavone, against ethanol induced gastric lesions. J Ethnopharmacol 71:45–53
Mao Z, Shin HD, Chen RR (2006) Engineering the E. coli UDP-glucose synthesis pathway for oligosaccharide synthesis. Biotechnol Prog 22:369–374
Masada S, Terasaka K, Oguchi Y, Okazaki S, Mizushima T, Mizukami H (2009) Functional and structural characterization of a flavonoid glucoside 1,6-glucosyltransferase from Catharanthus roseus. Plant Cell Physiol 50:1401–1415
Peterson JJ, Beecher GR, Bhagwat SA, Dwyer JT, Gebhardt SE, Haytowitz DB, Holden JM (2006a) Flavanones in grapefruit, lemons and limes: a compilation and review of the data from the analytical literature. J Food Compos Anal 19:S74–S80
Peterson JJ, Dwyer JT, Beecher GR, Bhagwat SA, Gebhardt SE, Haytowitz DB, Holden JM (2006b) Flavanones in oranges, tangerines (mandarins), tangors, and tangelos: a compilation and review of the data from the analytical literature. J Food Compos Anal 19:S66–S73
Rousseff RL, Martin SF, Youtsey CO (1987) Quantitative survey of narirutin, naringin, hesperidin and neohesperidin in citrus. J Agric Food Chem 35:1027–1030
Sheu JR, Hsiao G, Chou PH, Shen MY, Chou DS (2004) Mechanisms involved in the antiplatelet activity of rutin, a glycoside of the flavonol quercetin, in human platelets. J Agric Food Chem 52:4414–4418
Vogt T, Jones P (2000) Glycosyltransferases in plant natural product synthesis: characterization of a supergene family. Trends Plant Sci 5:380–386
Yan F, Di S, Rodas FR, Torrico TR, Murai Y, Iwashina T, Anai T, Takahashi R (2014) Allelic variation of soybean flower color gene W4 encoding dihydroflavonol 4-reductase 2. BMC Plant Biol 14:58
Yoon J-A, Kim B-G, Lee WJ, Lim Y, Chong Y, Ahn J-H (2012) Production of a novel quercetin glycoside through metabolic engineering of Escherichia coli. Appl Environ Microbiol 78:4256–4262
Zhou K, Qiao K, Edgar S, Stephanopoulos G (2015) Distributing a metabolic pathway among a microbial consortium enhances production of natural products. Nat Biotechnol 33:377–383
Acknowledgments
This work was supported by the Agri-Bio Industry Technology Development Program (316028-3), Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry and Fisheries (IPET), and the Priority Research Centers Program through the National Research Foundation of Korea funded by the Ministry of Education, Science and Technology (2009-0093824).
