Bacterial synthesis of four hydroxycinnamic acids
Applied Biological Chemistry volume 59, pages 173–179 (2016)
Abstract
Hydroxycinnamates are a class of phenolic compounds that have a C6-C3 carbon backbone. Hydroxycinnamic acids are derived from cinnamic acid via hydroxylation or methylation and are found in foods such as pears, coffee beans, and dandelions. They are involved in protection against chemotherapy side effects and the prevention of cardiovascular disease and cancer. We synthesized four types of hydroxycinnamates (p-coumaric acid, cinnamic acid, caffeic acid, and ferulic acid) from glucose in Escherichia coli by introducing different combination of four genes: tyrosine ammonia lyase, phenylalanine ammonia lyase, S.espanaensis monooxygenase, and Oryza sativa O-methyltransferase. The final yields of hydroxycinnamic acids were increased by engineering the metabolic pathway of E. coli. Using these strategies, 100.1 mg/L p-coumaric acid, 138.2 mg/L caffeic acid, 64 mg/L ferulic acid, and 1072.3 mg/L cinnamic acid were synthesized.
Introduction
Plants synthesize diverse phenolic compounds via phenylpropanoid pathway using phenylalanine (Dixon and Paiva 1995; Vogt 2010). A key enzyme that converts phenylalanine into cinnamic acid is phenylalanine ammonia lyase (PAL). Cinnamic acid becomes p-coumaroyl-coenzyme A (CoA) via hydroxylation and CoA attachment. p-Coumaroyl-CoA serves as a starting compound for the synthesis of benzoic acids, stilbenes, aurones, coumarins, flavonoids, and lignins. Cinnamic acid and p-coumaric acid along with caffeic acid, ferulic acid, and sinapinic acid are classified as hydroxycinnamic acids (HCs) (Vogt 2010). HCs have potential as precursors for the synthesis of thermoplastics, cosmetics, and flavors (Kaneko et al. 2006; Sariaslani 2007). They have diverse biological activities, including antiviral, antidiabetic, anticancer, and antiplatelet activities (Huang et al. 1988; Forkmann and Martens 2001; Jung et al. 2006; Luceri et al. 2007).
Although plants are major HC producer, the extraction of HCs from plant materials is not feasible due to the complexity and inefficiency of the separation and purification processes. Therefore, alternative approaches have been examined (Rodriguez et al. 2014). Microorganisms, particularly Escherichia coli, are good systems to synthesize phenolic compounds including HCs (Wang et al. 2015). To synthesize HCs in E. coli, phenylalanine and tyrosine serve as substrates. PAL converts phenylalanine into cinnamic acid and tyrosine ammonia lyase (TAL) converts tyrosine into p-coumaric acid. Caffeic acid is synthesized from p-coumaric acid via monooxygenase, Sam5 from Saccharothrix espanaensis, and further O-methylation by O-methyltransferase (OMT) results in the synthesis of ferulic acid. In this report, we used a combination of four genes, PAL, TAL, Sam5, and OMT, to synthesize four HCs, cinnamic acid, p-coumaric acid, caffeic acid, and ferulic acid, in E. coli. In addition, we used E. coli mutants in which genes in the shikimate pathway were deleted to increase phenylalanine and/or tyrosine. Using these strategies, 100.37 mg/L p-coumaric acid, 1332.84 mg/L cinnamic acid, 168.3 mg/L caffeic acid, and 73.3 mg/L ferulic acid were synthesized in E. coli.
Materials and methods
Constructs
PAL (AT3G53260) was cloned from Arabidopsis thaliana by reverse transcription-polymerase chain reaction (RT-PCR). mRNA was isolated from 2-week-old A. thaliana whole plants using the Plant Total RNA Isolation Kit (Qiagen, Hilden, Germany). cDNA was synthesized using oligo dT primers and Omniscript reverse transcriptase (Qiagen). PCR was carried out using Hotstart Taq DNA polymerase (Qiagen) and 5′-ATGAATTCGATGGATCAAATCGAAGCAATG-3′ and 5′-ATGCGGCCGCTTAGCAAATCGGAATCGGAG-3′ as primers (EcoRI and NotI sites are underlined). The resulting product was subcloned into the EcoRI/NotI sites of pACYC-Duet1 and named pA-AtPAL. TAL (Kim et al. 2013), Sam5 (Lee et al. 2014), and ROMT9 (Kim et al. 2006) were cloned previously. pA-SeTAL, pA-aroG-SeTAL-tyrA, and pA-aroGfbr-SeTAL-tyrAfbr were also cloned previously (Kim et al. 2013).
Construction of the SeTAL integrated E. coli strain
To integrate SeTAL into tyrR of E. coli chromosome, SeTAL was cloned into a pACYCDuet vector using EcoRI/HindIII site with primers (SeTAL-F and SeTAL-R) listed in Table 1. The resulting construct was used to generate a transformation cassette by PCR for a tyrR deletion with two primers (TyrR-del-F and TyrR-del-R), which include the region from the T7 promoter to the chloramphenicol resistance gene region and the tyrR region. The PCR product was purified and used to integrate SeTAL into tyrR with the Quick and Easy Conditional Knockout Kit (Gene Bridges, Heidelberg, Germany). The resulting E. coli strain contained SeTAL, which is controlled by the T7 promoter, and chloramphenicol resistance gene (Cm R) at the tyrR locus of the chromosome. The tyrR-SeTAL strain contained only one copy of SeTAL. The selection marker for the tyrR-SeTAL strain was chloramphenicol.
Culture conditions and analysis of the reaction product
The transformants were grown in LB medium containing 50 μg/mL antibiotics for 18 h at 37 °C. The culture was inoculated onto fresh LB medium containing antibiotics and grown until OD600 = 1.0. The cells were harvested and resuspended in M9 medium containing 2 % glucose, 1 % yeast extract, 50 μg/mL antibiotics, and 1 mM IPTG (isopropyl β-D-1-thiogalactopyranoside). The culture was grown for 24 h at 30 °C. The culture medium was extracted with ethyl acetate, and the upper layer was dried out in a Speed Vac and dissolved in 60 μL of DMSO (dimethyl sulfoxide). The product was analyzed via high-performance liquid chromatography (HPLC) (Thermo Fisher Scientific, Waltham, MA, USA) equipped with a photodiode array detector using a Polar C18 reversed-phase column (Agilent, Santa Clara, CA, USA; 4.60 × 250 mm, 0.45 μm). The HPLC conditions were described in Yang et al. (2015). The standard cinnamic acid, p-coumaric acid, caffeic acid, and ferulic acid were purchased from Sigma-Aldrich (St. Louis, MO, USA).
Results and discussion
Synthesis of cinnamic acid in E. coli

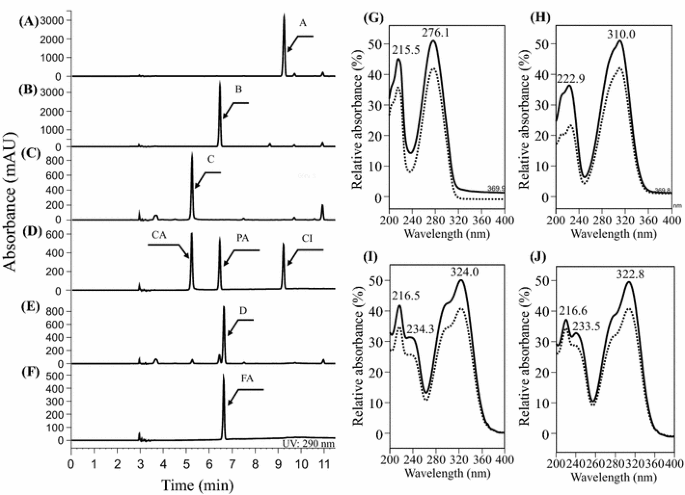

Cinnamic acid is synthesized from phenylalanine by PAL. PAL was cloned from A. thaliana and transformed into E. coli BL21 (DE3). The resulting transformant B-CiA1 was examined for the production of cinnamic acid. As shown in Fig. 1A, B-CiA1 produced a compound that had a same retention and spectrum as those of a standard cinnamic acid. This result showed that cinnamic acid was successfully synthesized in the B-CiAl strain.

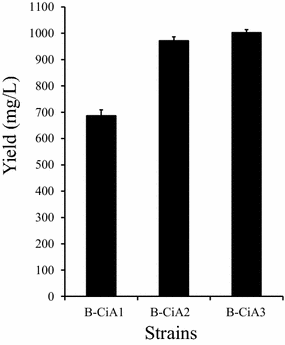

The phenylalanine content could influence the production of cinnamic acid. Therefore, we used E. coli mutants with deletions of gene(s) in the shikimate pathway. The B-T strain in which tyrR was deleted and the B-TT strain in which tyrR and tyrA were deleted were used to test the effect of phenylalanine on the production of cinnamic acid. TyrA competes with PheA for prephenate. Therefore, the deletion of tyrA resulted in increased phenylalanine production (Lütke-Eversloh and Stephanopoulos 2007; Juminaga et al. 2012). We made two strains by transforming B-T and B-TT with pA-SeTAL. The production of cinnamic acid ranged from 686.4 mg/L in B-CiA1 to 971.5 mg/L in B-CiA2 and 1002.6 mg/L in B-CiA3. Higher phenylalanine production was associated with higher cinnamic acid production (Fig. 2). Using B-CiA3, approximately 1072.3 mg/L of cinnamic acid could be synthesized in 36 h (Fig. 3A).
Synthesis of p-coumaric acid, caffeic acid, and ferulic acid in E. coli
p-Coumaric acid is synthesized from tyrosine by TAL. The TAL gene was cloned from S. espanaensis. TAL derived from plants showed the activity toward both tyrosine and phenylalanine (Rosler et al. 1997). However, an in vitro enzyme analysis with TAL from S. espanaensis showed that it used tyrosine preferentially over phenylalanine (Berner et al. 2006). We tested whether E. coli harboring TAL from S. espanaensis produced only p-coumaric acid. The B-pCA1 strain was grown, and the production of p-coumaric acid was examined by HPLC. As shown in Fig. 1, culture filtrates from B-pCA1 showed a peak that had a similar retention time and spectrum to those of p-coumaric acid (Fig. 1B, H), and the molecular mass of the reaction product was 164 Da, which corresponded with that of p-coumaric acid (data not shown). We could not observe a product that showed a similar retention time with cinnamic acid, even when we used other strains such as B-pCA2 and B-pCA3 (see below).
We tested the effects of TAL copy number on the production of p-coumaric acid. B-pCA1 had a single copy of TAL on the chromosome, which is regulated by the T7 promoter. B-pCA2 and B-pCA3 contained multiple copies of TAL as plasmids. B-pCA2 contained 10–12 because TAL was cloned in the pACYC-Duet1 vector (Tolia and Joshua-Tor. 2006). B-pCA3 has 20–40 copies of TAL. However, B-pCA2 produced more p-coumaric acid (44.2 mg/L) than both B-pCA1 (4.8 mg/L) and B-pCA3 (40.5 mg/L) (Fig. 4A). For up to ten copies, the TAL copy number was directly related to the yield of p-coumaric acid under our experimental conditions. However, more greater than 10 copies could result in a metabolic burden to the cell and therefore lead to reduced production of p-coumaric acid. The PCA-2 strain showed the highest production of p-coumaric acid.
We tested whether the tyrosine content is related to the production of p-coumaric acid. We used three strains (the tyrR deletion mutant [B-T], and the tyrR and pheA double deletion mutant [B-TP]), and TAL was transformed into each strain. TyrR is a transcription factor in the shikimate pathway and is inhibited by the endproduct tyrosine. Accordingly, the deletion of tyrR appears to increase tyrosine production. PheA directed prephenate to phenylalanine production. The production of p-coumaric acid in each transformant (B-pCA2 and B-pCA4) was examined. As expected, B-pCA4 (84.5 mg/L) showed higher production of p-coumaric acid than B-pCA2 (44.2 mg/L). This suggested that higher tyrosine production resulted in higher p-coumaric acid production. We overexpressed genes in the shikimate pathway to increase the tyrosine content. Wildtype versions and feedback inhibition versions of aroG and tyrA were used. Two new strains, B-pCA5 and B-pCA6, were generated, and the ability to produce p-coumaric acid was tested in each strain. The production of p-coumaric acid was higher in B-pCA5 (96.7 mg/L) than in B-pCA4 (84.5 mg/L). However, strain B-pCA6 (82.7 mg/L) produced a similar amount of p-coumaric acid as B-pCA4 (Fig. 4B). Although the tyrosine content is directly correlated to the production of p-coumaric acid, the metabolic balance between tyrosine and other cellular metabolites is also critical to increase the yield of p-coumaric acid. Using B-pCA5, the production of p-coumaric acid was monitored. The production of p-coumaric acid continued to increase until 36 h, which points the maximum production was reached (100.1 mg/L = 60.9 μM), and then production decreased slightly.
Caffeic acid is synthesized from p-coumaric acid by hydroxylation at the carbon 3 position. Sam5 hydroxylates several phenolic compounds, including p-coumaric acid (Berner et al. 2006; Lee et al. 2014). We transformed strain B-pCA5 with pC-Sam5, and the resulting strain, B-CA1, was used for the production of caffeic acid. As shown in Fig. 1C, B-CA1 produced a product whose retention time in the HPLC analysis was indistinguishable from that of standard caffeic acid. This suggested that Sam5 functioned properly and caffeic acid was synthesized in E. coli. Using the B-CA1 strain, approximately 138.2 mg/L (76.7 μM) caffeic acid was synthesized after 36 h (Fig. 3B).
To synthesize ferulic acid, an additional gene, ROMT9, was needed. ROMT9 is an O-methyltransferase; it can transfer a methyl group from S-adenosyl methionine (SAM) to caffeic acid and flavonoids (Kim et al. 2006). ROMT9 was subcloned into the second cloning site of pC-Sam5, and the resulting construct (pC-Sam5-ROMT9) was transformed into B-pCA5. The resulting strain, B-FA1, was tested for the production of ferulic acid. Based on an HPLC analysis of the reaction product, the peak had the same retention time and spectrum as those of standard ferulic acid (Fig. 1E, J). This showed that ferulic acid was successfully synthesized. B-pCA5 synthesized approximately 64 mg/L (33.0 μM) ferulic acid after 36 h (Fig. 3B).
We synthesized p-coumaric acid, caffeic acid, and ferulic acid without adding tyrosine to the medium. It is possible that E. coli used tyrosine derived from the yeast extract. Yeast extract contains 0.8 % free tyrosine according to BD Bionutrients Technical Manual (BD Bioscience, San Jose, CA, USA). This means that 80 mg/L (approximately 440 μM) tyrosine was present in the medium. Considering cellular metabolism, this amount of tyrosine is not sufficient to synthesize p-coumaric acid, caffeic acid, or ferulic acid; it is necessary to produce tyrosine using glucose via shikimate pathway of E. coli. Therefore, in our study, the production p-coumaric acid in E. coli was correlated with the amount of tyrosine.

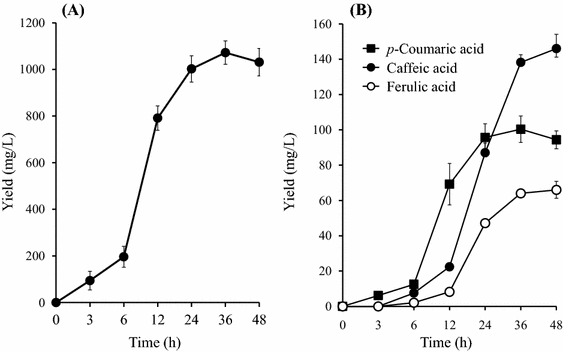

We synthesized four HCs, cinnamic acid, p-coumaric acid, caffeic acid, and ferulic acid. Each HC or two or three HCs have been synthesized and reported by other groups (Furuya et al. 2012; Kang et al. 2012; Vargas-Tah et al. 2015; Zhang and Stephanopoulos 2013). The biosynthesis of all four HCs has not reported to date. The final HC yields reported by other groups are difficult to compare owing to differences in units and culture media. The bioconversion of p-coumaric acid to caffeic acid using E. coli harboring cytochrome P450 showed the highest yield (2.8 g/L) (Furuya et al. 2012). The yield of caffeic acid rages from 106 mg/L (Zhang and Stephanopoulos 2013) to 150 mg/L (Kang et al. 2012). Therefore, the caffeic acid yield observed in the current study (138.2 mg/L) was comparable to that in previous studies.
The final yield of cinnamic acid was much higher than that of p-coumaric acid, caffeic acid, and ferulic acid. The content of free phenylalanine in the yeast extract is 2.0 %, which is 2.5-fold higher than that of free tyrosine (0.8 %). However, this cannot fully account for the final yield because approximately 200 μg/mL phenylalanine was present in the medium. E. coli should synthesize more phenylalanine than tyrosine in order to synthesize more cinnamic acid than p-coumaric acid. Difference in PAL and TAL activity could explain the observed difference in the final yield of p-coumaric acid and caffeic acid. Previous studies have attempted to optimize PAL or TAL in order to increase the final yields (Vargaz-Tah et al. 2015). These two enzymes are responsible for the conversion of phenylalanine and tyrosine to p-coumaric acid and caffeic acid, respectively. Additionally, the shikimate pathway involved in the biosynthesis of tyrosine and phenylalanine is conserved until prephenate (Rodriguez et al. 2014). PheA is responsible for the synthesis of phenylpyruvate from prephenate. TyrA functions in the synthesis of tyrosine. The activity of pheA might be much higher than that of tyrA, which leads to increased phenylalanine synthesis.
References
Berner M, Krug D, Bihlmaier C, Vente A, Müller R, Bechthold A (2006) Genes and enzymes involved in caffeic acid biosynthesis in the actinomycete Saccharothrix espanaensis. J Bacteriol 188:2666–2673
Dixon RA, Paiva NL (1995) Stree-induced phenylpropanoid metabolism. Plant Cell 7:1085–1097
Forkmann G, Martens S (2001) Metabolic engineering and applications of flavonoids. Curr Opin Biotechnol 12:155–160
Furuya T, Arai Y, Kino K (2012) Biotechnological production of caffeic acid by bacterial cytochrome P450 CYP199A2. Appl Environ Microbiol 78:6087–6094
Huang M-T, Smart RC, Wong C-Q, Conney AH (1988) Inhibitory effect of curcumin, chlorogenic acid, caffeic acid, and ferulic acid on tumor promotion in mouse skin by 12-O-tetradecanoylphorbol-13-acetate. Cancer Res 48:5941–5946
Juminaga D, Baidoo EE, Redding-Johanson AM, Batth TS, Burd H, Mukhopadhyay A, Petzold CJ, Keasling JD (2012) Modular engineering of l-tyrosine production in Escherichia coli. Appl Environ Microbiol 78:89–98
Jung UJ, Lee MK, Park YB, Jeon SM, Choi MS (2006) Antihyperglycemic and antioxidant properties of caffeic acid in db/db mice. J Pharmacol Exp Ther 318:476–483
Kaneko T, Thi TH, Shi DJ, Akashi M (2006) Environmentally degradable, high-performance thermoplastics from phenolic phytomonomers. Nat Mater 2(5):966–970
Kang S-Y, Choi O, Lee JK, Hwang BY, Um T-B, Hong Y-S (2012) Artificial biosynthesis of phenylpropanoic acids in a tyrosine overproducing Escherichia coli strain. Microb Cell Fact 11:152
Kim BG, Lee Y, Hur H-G, Lim Y, Ahn J-H (2006) Flavonoid 3′-O-methyltransferase from rice: cDNA cloning, characterization and functional expression. Phytochemistry 67:387–394
Kim MJ, Kim B-G, Ahn J-H (2013) Biosynthesis of bioactive O-methylated flavonoids in Escherichia coli. Appl Microbiol Biotechnol 97:7195–7204
Lee H, Kim B-G, Ahn J-H (2014) Production of bioactive hydroxyflavones by using monooxygenase from Saccharothrix espanaensis. J Biotechnol 176:11–17
Luceri C, Giannini L, Lodovici M, Antonucci E, Abbate R, Masini E, Dolara P (2007) p-Coumaric acid, a common dietary phenol, inhibits platelet activity in vitro and in vivo. Br J Nutr 97:458–463
Lütke-Eversloh T, Stephanopoulos G (2007) L-Tyrosine production by deregulated strains of Escherichia coli. Appl Microbiol Biotechnol 75:103–110
Rodriguez A, Martinez JA, Flores N, Escalante A, Gosset G, Bolivar F (2014) Engineering Escherichia coli to overproduce aromatic amino acids and derived compounds. Microb Cell Fact 13:216
Rosler J, Krekel F, Amrhein N, Schmid J (1997) Maize phenylalanine ammonia-lyase has tyrosine ammonia- lyase activity. Plant Physiol 113:175–179
Sariaslani FS (2007) Development of a combined biological and chemical process for production of industrial aromatics from renewable resources. Annu Rev Microbiol 61:51–69
Tolia NH, Joshua-Tor L (2006) Strategies for protein coexpression in Escherichia coli. Nat Methods 3:55–64
Vargas-Tah A, Matinez LM, Hernádez-Chávez G, Rocha A, Martínez Bolívar F, Gosset G (2015) Production of cinnamic and p-hydroxycinnamic acid from sugar mixtures with engineered Escherichia coli. Microb Cell Fact 14:6
Vogt T (2010) Phenylpropanoid biosynthesis. Mol Plant 3:2–20
Wang S, Zhang S, Xiao A, Rasmussen M, Skidmore C, Zhan J (2015) Metabolic engineering of Escherichia coli for the biosynthesis of various phenylpropanoid derivatives. Metab Eng 29:153–159
Yang S-M, Shim GY, Kim B-G, Ahn J-H (2015) Biological synthesis of coumarins in Escherichia coli. Microb Cell Fact 14:65
Zhang H, Stephanopoulos G (2013) Engineering E. coli for caffeic acid biosynthesis from renewable sugars. Appl Microbiol Biotechnol 97:3333–3341
Acknowledgments
This work was supported by a grant from the Next-Generation BioGreen 21 Program (PJ00948301), the Rural Development Administration, and Priority Research Centers Program through the National Research Foundation of Korea funded by the Ministry of Education, Science and Technology (2009-0093824).
