PLANT U-BOX PROTEIN 10 negatively regulates abscisic acid response in Arabidopsis


MYC2 is well known as a positive regulator for abscisic acid (ABA) signaling but whether PLANT U-BOX PROTEIN 10 (PUB10) is involved in ABA responses has not been reported. Here, we show that the E3 ubiquitin ligase PUB10 modulates ABA signaling in Arabidopsis. PUB10ox (35S:PUB10-myc) and myc2 loss-of-function mutants were hyposensitive to ABA during germination, whereas pub10 loss-of-function and MYC2ox (35S:MYC2-GFP) mutants were hypersensitive. In addition, pub10 mutants showed hypersensitivity to high salt and osmotic stress during germination; by contrast, PUB10ox line displayed the opposite phenotype. ABA-induced expression of KIN2 (Cold- and ABA-Inducible Protein), RD22 (Responsive to Dehydration 22), ANAC019 (NAC Domain-Containing Protein 19), and ANAC055 (NAC Domain-Containing Protein 55) was enhanced in both pub10 and MYC2ox plants. Taken together, pub10 plants phenocopied MYC2ox plants, whereas PUB10ox plants phenocopied myc2 in ABA response. Our results provide evidence that PUB10 negatively regulates ABA signaling in Arabidopsis.


Abscisic acid (ABA) is a phytohormone present in all vascular plants and it participates in various developmental and physiological processes during the plant life cycle, including seed development, seed dormancy, germination, and abiotic stress responses [1]. The phosphorylation and dephosphorylation of protein are key post-translational modifications in ABA signal transduction [2]. In addition, regulation of protein stability via ubiquitination of key components of the ABA signaling pathways also plays an important role [3].

E3 ubiquitin ligases are responsible for the specificity of ubiquitination by recruiting appropriate target proteins [4]. Until now, only a limited number of Plant U-box (PUB) E3 ligases have been characterized as both positive and negative regulators of ABA signaling [5]. For instance, PUB12 and PUB13 were found to ubiquitinate ABI1 in the presence of both ABA and Pyrabactin Resistance 1 (PYR1) [6]. Another U-box E3 ligase, Carboxyl terminus of the Hsc70-Interacting Protein (CHIP), monoubiquitinated PP2A subunits and enhances their activities under stress conditions [7]. In addition, PUB9, PUB18, and PUB19 are involved in ABA signaling [8, 9].

MYC2 has been well characterized as a central transcriptional regulator in JA signaling [10, 11]. MYC2 was first isolated as a transcription factor that binds to the RESPONSIVE DEHYDRATION 22 (RD22) promoter and subsequently characterized as a positive regulator of ABA signaling through genetic analysis [12, 13]. Hence, MYC2 seems to integrate at least two (ABA and JA) different signaling pathways to coordinate growth and development in Arabidopsis.

Crosstalk between ABA and JA signaling pathways has been poorly examined so far. Previously, we showed that MYC2 directly interacts with PUB10, and that PUB10 modulates JA signaling by destabilizing MYC2 protein [14]. However, how PUB10 regulates ABA responses is mostly unknown. Here, we showed that PUB10 is a negative regulator in ABA signaling.

Materials and methods

Plant materials and growth conditions

Arabidopsis thaliana Columbia ecotype (Col-0), myc2 (jin1-9, SALK_017005), pub10 (SALK_017111), MYC2ox, and PUB10ox lines [14] were grown on 0.5% agar medium containing Murashige and Skoog (MS) salts, 1% sucrose, and 0.5 g/L MES hydrate at 22 °C under 16 h white fluorescent light (100 μmol m−2 s−1)/8 h dark. T-DNA insertion lines were obtained from the SALK collection [15].

Germination test

Seeds were spread onto MS agar plates with or without 2 μM ABA, 150 mM NaCl, or 200 mM mannitol. After 4 days of stratification at 4 °C, seed germination was monitored from 0 to 7 days.

Abscisic acid treatments

Ten-day-old Col-0, pub10, and MYC2ox Arabidopsis seedlings grown on MS agar plates were transferred to liquid MS medium containing 10 μM ABA. Treated seedlings were collected at the indicated time points for real-time RT-PCR analysis.

Real-time RT-PCR analysis

Total RNA was extracted from Arabidopsis seedlings treated with ABA using an RNeasy Plant Mini Kit (Qiagen) including DNase I treatment. Reverse transcription was performed using 2 μg of each total RNA and oligo (dT)20 primers by SuperScript III reverse transcriptase (Invitrogen). Real-time RT-PCR was performed using SYBR premix Ex Taq (Tli RNaseH plus) (TaKaRa) on the Bio-Rad CFX96 real-time system with gene-specific primers. Primer sequences are listed in Additional file 1: Table S1.

Accession numbers

Sequence data can be found in the Arabidopsis Genome Initiative data library under the following accession numbers: ACT2 (AT3G18780), ANAC019 (AT1G52890), ANAC055 (AT3G15500), KIN2 (AT5G15970), MYC2 (AT1G32640), PUB10 (AT1G71020), RD22 (AT5G25610).

Results and discussion

PUB10 negatively regulates ABA response during seed germination

To examine PUB10 function in ABA responses, we analyzed the germination rates of pub10, PUB10ox (35S:PUB10-myc), myc2 (jin1-9), and MYC2ox (35S:MYC2-GFP) seeds on MS agar plates containing 2 µM ABA. Germination rates of all genotypes in MS medium without ABA were almost the same as those of Col-0 (Fig. 1a). At 2 µM ABA, the germination rates of pub10 and MYC2ox seeds were significantly reduced compared to Col-0 seeds (Fig. 1b), but germination of PUB10ox and myc2 seeds showed a remarkable ABA-insensitive phenotype (Fig. 1b). These results indicate that the altered germination rates observed in PUB10 and MYC2 mutants are dependent on ABA sensitivity, and that PUB10 and MYC2 act as positive and negative ABA response regulators, respectively. These opposing ABA sensitivities between PUB10 and MYC2 mutants are consistent with our previous observation that MYC2 protein is destabilized by the E3 ubiquitin ligase PUB10 [14].

Fig. 1

ABA affects myc2, MYC2ox, pub10, and PUB10ox mutant germination. Col-0, myc2, MYC2ox, pub10, and PUB10ox seed germination rates were measured on MS medium containing 0 (a) or 2 μM (b) ABA. The percentage of seeds showing 1 mm radical length was scored. Symbols represent average values ± SD (n = 3). Col-0 (filled circle), myc2 (empty diamond), MYC2ox (empty triangle), pub10 (filled diamond), and PUB10ox (empty circle)

PUB10 positively regulates salt and osmotic stress tolerance during seed germination

ABA plays a key role in abiotic stress responses including drought, salt, and osmotic stress [1]. To evaluate the effect of PUB10 on salt and osmotic stress responses, we analyzed the seed germination rates of pub10 and PUB10ox on MS agar plates containing 150 mM NaCl or 200 mM mannitol. The germination rate of pub10 seeds was significantly decreased in high salt medium compared to Col-0 seeds, but PUB10ox seeds showed an increased germination rate compared to Col-0 seeds (Fig. 2a). The germination rates of pub10 and PUB10ox seeds in mannitol-containing medium were similar to those in high salt medium. PUB10ox and pub10 seeds showed tolerant and hypersensitive phenotypes to osmotic stress, respectively (Fig. 2b). Growth inhibition of pub10 mutant seedlings was stronger than that of Col-0 seedlings (Fig. 2c). Taken together, these results indicated that PUB10 acts as a positive regulator for salt and osmotic stress tolerance.

Fig. 2

pub10 and PUB10ox germination in the presence of high salt and osmotic stress. Col-0, pub10, and PUB10ox seed germination rate on MS medium containing 150 mM NaCl (a) and 200 mM mannitol (b). Early post-germinative growth of Col-0 and pub10 mutants 5 days after germination on 150 mM NaCl medium (c). The percentage of seeds showing 1 mm radical length was scored after 4 days of stratification at 4 °C. Seed germination was monitored from 0 to 7 days. Symbols represent average values ± SD (n = 3). Col-0 (filled circle), pub10 (empty triangle), and PUB10ox (empty circle). Scale bar = 10 mm

PUB10 negatively regulates ABA-responsive gene expression

To investigate how PUB10 regulates gene expression in response to ABA, we performed a time-course analysis for ABA-responsive gene expression in pub10 and MYC2ox plants after ABA treatment. To determine the role of PUB10 in the MYC2-dependent ABA signaling pathway, we monitored the expression of KIN2, RD22, ANAC019, and ANAC055 genes previously reported as ABA-responsive genes regulated by MYC2 [12, 15, 16]. KIN2 and RD22 expression were enhanced more than twofold in pub10 mutants compared to Col-0 6 h after ABA treatment (Fig. 3a, b). A previous report showed that transcription levels of KIN2 and RD22 were enhanced in MYC2ox and reduced in myc2 after ABA treatment [12]. Therefore, enhanced expression of KIN2 and RD22 in pub10 could be caused by increased MYC2 protein level. Transcription levels of two NAC transcription factors, ANAC019 and ANAC055, were induced by ABA, dehydration, and salt, and are also known as direct MYC2 targets [15,16,17,18]. ANAC019 and ANAC015 expression were higher in pub10 and MYC2ox plants than those in Col-0 plant at 3 to 6 h after ABA treatment (Fig. 3c, d). Similar expression patterns in pub10 and MYC2ox after ABA treatment support the notion that PUB10 negatively regulates target gene expression by destabilizing MYC2 protein. Overall, our results indicate that PUB10 negatively regulates ABA or salt responses by modulating MYC2 protein levels.

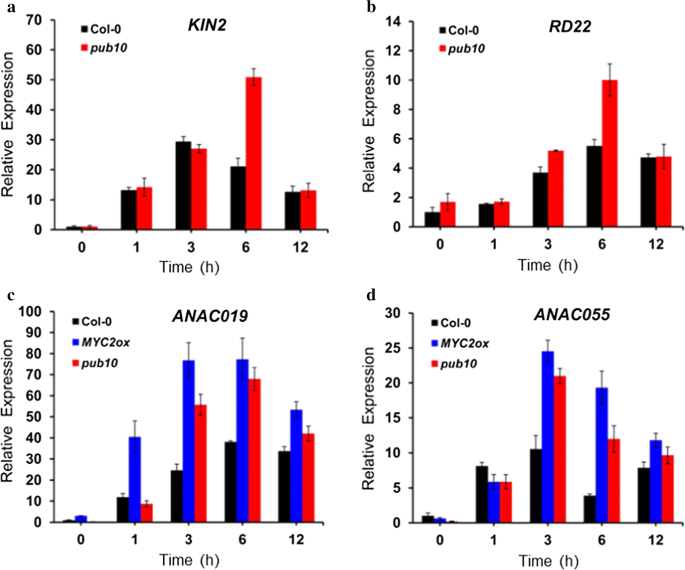

Fig. 3

ABA-responsive gene expression levels in pub10 and MYC2ox plants after ABA treatment. Time course expression levels of KIN2 (a) and RD22 (b) after ABA treatment in Col-0 and pub10 plants. Time course expression levels of ANAC019 (c) and ANAC055 (d) after ABA treatment in Col-0, MYC2ox, and pub10 plants. ad transcript levels were normalized to ACT2 expression levels, and bars represent average ± SD (n = 3 independent seedling pools)

Although MYC2 has been first identified as a positive regulator of ABA responses [11, 12], MYC2 function in ABA signaling is almost unknown. Rather, MYC2 has been intensively studied as a key regulator in the JA signaling pathway [10]. MYC2 directly binds to the promoters of two NAC transcription factors, ANAC019 and ANAC055 and activates their transcription levels. These two NAC factors enhance the downstream transcription JA- and ABA-responsive genes, and also play key roles in the crosstalk between JA and ABA signaling (Fig. 4) [10, 15]. We suggest that PUB10 acts as a negative regulator of ABA signaling through MYC2; further study on the regulation of PUB10 protein by ABA is necessary to understand how PUB10 participates in the fine tuning of ABA signaling and JA crosstalk. Our results provide new insights for increasing ABA-mediated abiotic stress tolerance in plants.

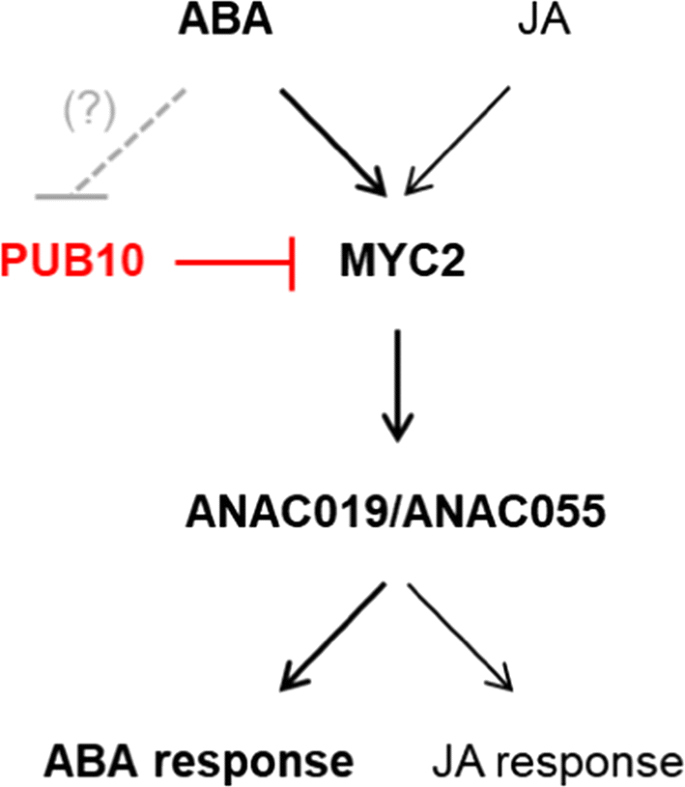

Fig. 4

Proposed model of the role of PUB10 in ABA signaling pathway. MYC2 is a positive regulator for ABA responses and is activated by ABA. MYC2 directly activates two NAC transcription factor (TF) genes, ANAC019 and ANAC055, and these NAC TFs enhance downstream ABA-responsive gene transcription. PUB10 negatively regulates ABA responses by destabilizing MYC2 protein. PUB10 protein level or activity might be modulated after ABA treatment

Availability of data and materials

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.


  1. 1.

    Finkelstein R (2013) Abscisic acid synthesis and response. Arabidopsis Book. 11:e0166

  2. 2.

    Raghavendra AS, Gonugunta VK, Christmann A, Grill E (2010) ABA perception and signaling. Trends Plant Sci 15:395–401

  3. 3.

    Lopez-Molina L, Mongrand S, Kinoshita N, Chua NH (2003) AFP is a novel negative regulator of ABA signaling that promotes ABI5 protein degradation. Genes Dev 17:410–418

  4. 4.

    Vierstra RD (2009) The ubiquitin-26S proteasome system at the nexus of plant biology. Nat Rev Mol Cell Biol 10:385–397

  5. 5.

    Yee D, Goring DR (2009) The diversity of plant U-box E3 ubiquitin ligases: from upstream activators to downstream target substrates. J Exp Bot 60:1109–1121

  6. 6.

    Kong L, Cheng J, Zhu Y, Ding Y, Meng J, Chen Z et al (2015) Degradation of the ABA co-receptor ABI1 by PUB12/13 U-box E3 ligases. Nature Commun. 6:8630

  7. 7.

    Luo JH, Shen GX, Yan JQ, He CX, Zhang H (2006) AtCHIP functions as an E3 ubiquitin ligase of protein phosphatase 2A subunits and alters plant response to abscisic acid treatment. Plant J. 46:649–657

  8. 8.

    Samuel MA, Mudgil Y, Salt JN, Delmas F, Ramachandran S, Chilelli A et al (2008) Interactions between the S-domain receptor kinases and AtPUB-ARM E3 ubiquitin ligases suggest a conserved signaling pathway in Arabidopsis. Plant Physiol 147:2084–2095

  9. 9.

    Bergler J, Hoth S (2011) Plant U-box armadillo repeat proteins AtPUB18 and AtPUB19 are involved in salt inhibition of germination in Arabidopsis. Plant Biol. 13:725–730

  10. 10.

    Kazan K, Manners JM (2013) MYC2: the master in action. Mol Plant. 6:686–703

  11. 11.

    Lorenzo O, Chico JM, Sánchez-Serrano JJ, Solano R (2004) JASMONATE-INSENSITIVE1 encodes a MYC transcription factor essential to discriminate between different jasmonate-regulated defense responses in Arabidopsis. Plant Cell. 16:1938–1950

  12. 12.

    Abe H, Yamaguchi-Shinozaki K, Urao T, Iwasaki T, Hosokawa D, Shinozaki K (1997) Role of Arabidopsis MYC and MYB homologs in drought- and abscisic acid-regulated gene expression. Plant Cell. 9:1859–1868

  13. 13.

    Abe H, Urao T, Ito T, Seki M, Shinozaki K, Yamaguchi-Shinozaki K (2003) Arabidopsis AtMYC2 (bHLH) and AtMYB2 (MYB) function as transcriptional activators in abscisic acid signaling. Plant Cell. 15:63–78

  14. 14.

    Jung C, Zhao P, Seo JS, Mitsuda N, Deng S, Chua NH (2015) PLANT U-BOX PROTEIN10 regulates MYC2 stability in Arabidopsis. Plant Cell. 27:2016–2031

  15. 15.

    Alonso JM, Stepanova AN, Leisse TJ, Kim CJ, Chen H, Shinn P et al (2003) Genome-wide insertional mutagenesis of Arabidopsis thaliana. Science 301:653–657

  16. 16.

    Jiang H, Li H, Bu Q, Li C (2009) The RHA2a-interacting proteins ANAC019 and ANAC055 may play a dual role in regulating ABA response and jasmonate response. Plant Signal Behav. 4:464–466

  17. 17.

    Tran LS, Nakashima K, Sakuma Y, Simpson SD, Fujita Y, Maruyama K et al (2004) Isolation and functional analysis of Arabidopsis stress-inducible NAC transcription factors that bind to a drought-responsive cis-element in the early responsive to dehydration stress 1 promoter. Plant Cell. 16:2481–2498

  18. 18.

    Gimenez-Ibanez S, Boter M, Ortigosa A, García-Casado G, Chini A, Lewsey MG et al (2017) JAZ2 controls stomata dynamics during bacterial invasion. New Phytol 213:1378–1392

Download references


We thank Bobby Williams, Cheng Lu, and Bongsoo Park for their helpful suggestions.


This work was supported in part by a grant from DuPont Company. C.J. was supported in part by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2016R1D1A1B03932070) and a grant from the Next-Generation BioGreen 21 Program (PJ013399) of Rural Development Administration, Republic of Korea.

Author information




CJ, and NHC conceived the experiments. JSS, PZ, and CJ conducted the experiments. JSS, CJ, and NHC analyzed the results. JSS, CJ, and NHC wrote the manuscript. All authors read and approved the final manuscript.

Corresponding authors

Correspondence to Choonkyun Jung or Nam-Hai Chua.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Additional file

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Seo, J.S., Zhao, P., Jung, C. et al. PLANT U-BOX PROTEIN 10 negatively regulates abscisic acid response in Arabidopsis. Appl Biol Chem 62, 39 (2019).
