Anti-adipogenic effects of viscothionin in 3T3-L1 adipocytes and high fat diet induced obesity mice
Applied Biological Chemistry volume 63, Article number: 9 (2020)
Viscum album subsp. Coloratum, also known as Korean mistletoe, is a traditional herb that has more recently been used for the treatment of nervine, hypertensive and cardiovascular diseases. Therefore, this study was undertaken to access the anti-obesity effect of Korean mistletoe-derived polypeptide viscothionin using 3T3-L1 adipocytes in vitro and in vivo mouse experimental model. Viscothionin (up to 5 μM) was used to treat mouse 3T3-L1 pre-adipocytes during adipocyte differentiation. Adipocyte differentiation in 3T3-L1 cells was confirmed by Oil Red O staining. Obesity was induced by a high-fat diet (HFD) in C57BL/6J mice, followed by oral administration of viscothionin (up to 10 mg/kg) for 3 weeks. As a result, viscothionin (5 μM) inhibited differentiation of adipocyte cells and attenuated accumulation of intracellular lipids through activation of 5′-adenosine monophosphate-activated protein kinase (AMPK), by down-regulating phosphorylation in AKT and glycogen synthase kinase 3β (GSK3β). Treatment of viscothionin also decreased the levels of sterol regulatory element binding protein-1 (SREBP-1) and its target gene, fatty acid synthase (FAS). Moreover, viscothionin (10 mg/kg) significantly suppressed body weight and fat content, and improved serum lipid concentration, compared with the standard drug simvastatin (10 mg/kg), a well-known anti-obesity agent. The present study suggests, that viscothionin exerts anti-adipogenic effect through the activation of AMPK and has potential to prevent HFD-induced obesity.
Obesity is a complex chronic disorder which is linked to a number of health complications, including diabetes, hypertension, cancer, hyperlipidemia, osteoarthritis, and heart diseases . 3T3-L1 cells are entrenched in vitro model for assessing the differentiation of adipocytes at a number of developmental stages, including, differentiation stages associated with obesity . 3T3-L1 cells have been extensively studied for determining the anti-adipogenic effects of several existing and new therapeutic compounds that have potential to control body weight gain or obesity. Thus suggesting that, the establishment of animal models could be useful to assess the anti-obesity potential of any therapeutic agents for the treatment of obesity. Studies have confirmed that mice fed with high-fat diet (HFD) are excellent obesity models in which the dietary conditions are the major contributors .
5′-Adenosine monophosphate-activated protein kinase (AMPK) is a heterotrimeric protein complex that acts as an energy sensor in homeostasis . The activity of AMPK is achieved by the phosphorylation of critically self-contained threonine residue (Thr172) . Phosphorylation of AMPK improves energy production by reducing the energy consumption of each biosynthetic pathway and increasing fatty acid oxidation . AMPK acts in the regulation of glucose and adipocyte-associated lipid homeostasis, thus causes several metabolic changes . Therefore, AMPK is known to be a significant target of anti-adipogenic and anti-obesity agents.
Mistletoe, a semi-parasitic plant, grows well on various types of trees worldwide. Mistletoe has several pharmacological activities, and can act as a nervine, hypertensive, vasodilator, or relaxant [8,9,10]. Korean mistletoe (Viscum album subsp. Coloratum) belonging to family Santalaceae, has been used as an herbal medicine that has recently been known to produce several bioactive components, including viscothionin . However, no studies have been reported so far on viscothionin whether it possesses anti-adipogenic and anti-obesity effects along with an underlying mechanism for the observed activities. Therefore, herein this research, we investigated whether viscothionin activates AMPK, whose activation known to suppress adipogenesis. Consequently, we also performed in vivo studies in order to validate the anti-obesity effects of viscothionin using HFD-fed mice as an animal model.
Materials and methods
Viscothionin isolated from Korean mistletoe was prepared with a slight modification of a previously reported method, and was used with purity over 97% . The insulin, dexamethasone (purity over 97%), 3-isobutyl-1-methylxanthine (purity over 99%), dimethyl sulfoxide (DMSO), and compound C (AMPK inhibitor) were procured from Sigma (St. Louis, MO, USA). Simvastatin as a standard anti-obesity drug was purchased from Sigma (St. Louis, MO, USA). A kit from Oil Red O staining was purchased from Lifeline Cell Technology (Carlsbad, CA, USA). Primary antibodies for AMPK, GSK3β, p-ACC, p-AKT, p-GSK3β, ACC, AKT, phosphorylate (p)-AMPK, and β-actin were procured from Cell Signaling (Danvers, MA, USA). Anti-rabbit, or anti-mouse IgG secondary antibodies were purchased from Millipore (Bedford, MA, USA). Other ingredients and cell culture medium were obtained from Hyclone Ltd., Logan, UT, USA.
Cell culture and adipocyte differentiation
Mouse 3T3-L1 pre-adipocytes (American Type Culture Collection, Manassas, VA, USA) were cultured at 37 °C, 5% CO2 atmosphere in Dulbecco’s modified Eagle’s medium (Gibco BRL, NY, USA) supplemented with 10% FBS and penicillin/streptomycin (Gibco BRL). The 3T3-L1 pre-adipocytes were incubated for 2 days until confluence. Here the cells were exposed to an adipogenic differentiation medium (DMI; DMEM containing 5% FBS, 0.5 mM 3-isobutyl-1-methylxanthine, 1 mM dexamethasone, and 10 μg/mL insulin) for 4 days. After 2 days, the DMI was changed with DMEM containing 5% FBS and 10 μg/mL insulin, and then changed with DMEM containing 5% FBS every other day. The viscothionin was dissolved in phosphate buffered saline (PBS) at 100 mM, and then reconstituted in each medium at the working concentration. Additionally, cells were pre-treated with compound C (20 μM) for one hour, then treated with viscothionin (5 μM).
Oil Red O staining
Oil Red O staining was performed using the staining kit protocol described elsewhere. Oil Red O stained cultures were photographed using an Observer A1 microscope at magnification 100× (Carl Zeiss, Jena, Germany). After taking the photographs, the Oil Red O stained culture dye retained in the cells was eluted with isopropanol and quantified using spectrophotometer (absorbance at 540 nm, PowerWave 2, Bio-Tek Instruments, Winooski, VT, USA).
For RT-PCR analysis, A Mastercycler Gradient 5331 Thermal Cycler (Eppendorf, Germany) was used for the amplification of cDNA. Fluorescence signals were measured after each cycle for RT-PCR analysis using an ABI Step One Plus Sequence Detection System (Applied Biosystems, Branchburg, NJ, USA). A Primer Express Software (Applied Biosystems) was employed for the designing of specific sense and antisense RT-PCR primers which were as follows: forward 5′-GAAGTGGTGGAGAGACGCTTAC-3′ and reverse 5′-TATCCTCAAAGGGCTGGACTG-3′ for SREBP-1; forward 5′-CCCAGCCCATAAGAGTTACA-3′ and 5′-ATCGGGAAGTCAGCACAA-3′ for FAS; forward 5′-GCATGGCCTTCCGTGTTC-3′ and reverse 5′- GATGTCATCATACTTGGCAGGTTT-3′ for GAPDH, housekeeping gene.
Determination of intracellular triglyceride
Intracellular triglyceride content was determined using a commercial triglyceride assay kit system (BioAssay, Hayward, CA, USA). Aliquots of various concentrations of viscothionin, with or without compound C were used for the treatment of adipocyte cells in a 12-well plate during their differentiation. Then, the cells were washed with PBS and the cell suspension was homogenized after the addition of homogenizing solution (154 mM KCl, 1 mM EDTA, 50 mM Tris, pH 7.4) followed by centrifugation (3000 rpm/5 min) of cell lysate for the removal of fat layer. The supernatants were then assessed for triglyceride content. Triglyceride content was normalized using the bovine serum albumin (BSA) as a standard.
Proteins originated from the cell lysates were subjected to SDS-PAGE using 8%, 10% and 14% gel, and then transferred to polyvinylidene difluoride (PVDF) membranes (Bio-Rad, Laboratories, Hercules, CA, USA). 5% skim milk was used for the blocking of the membranes, followed by incubation with each primary antibody in 1% skim milk at 4 °C overnight. Then, the blots were incubated with each secondary antibody for one hour, and signals were detected using a SuperSignal West Dura (Thermo Scientific, CA, USA). A ChemiImager (Alpha Innotech, San Leandro, CA, USA) was employed for analyzing the results.
Animals and in vivo experimental design
Forty male C57BL/6J mice, about 6 weeks old, were purchased from Dae-Han Biolink (Daejeon, Korea) and were maintained under pathogen-free conditions on a 12-h light/dark. The mice were randomly divided into two groups and were fed either a normal-diet (n = 8) or an HFD (n = 32) with 45% of the calorie fat. The HFD mice were fed for 6-week in order to induce obesity. After 6-week, the HFD-fed mice were randomly divided into four sub-groups and each sub-group was orally administered either 0.1 mL saline (n = 8), 1 mg/kg viscothionin in 0.1 mL saline (n = 8), 10 mg/kg viscothionin in 0.1 mL saline (n = 8), or 10 mg/kg simvastatin (Sigma; purity over 97%) in 0.1 mL saline daily for 3 weeks. The mice had free access to food and water and their food consumption was measured daily, while their weight gain was measured weekly. The weight gain/feed ratio was calculated as weight gain divided by total food intake. After fasting for 12 h and before collecting blood, all mice were scanned using micro-CT for abdominal visceral fat analysis. All mice were maintained according to the Chonbuk National University Institutional Guidelines for the care and use of experimental animals (Approval number: CBU 2018-0070; Approval date: November 28, 2018).
All biochemical tests for obesity (triglyceride and total cholesterol concentrations) were performed on a VetTest 8008 Chemistry Analyzer from IDEXX, Seoul, South Korea. Levels of high-density lipoprotein (HDL) and low-density lipoprotein (LDL) were determined according to the instructions of kit manufacturer (Cell Biolabs, San Diego, CA, USA).
Abdominal visceral fat analyses
The mouse visceral fat distribution in the abdominal cavity was determined by micro-CT scanner (Skyscan-1072, TomoNT, Aartselaar, Belgium) between frames at a 10 μm slice thickness. The visceral fat distribution was determined using dedicated software (CTAn v.188.8.131.52).
All the results are presented as mean ± SE, and analyzed by the Student’s t-test, followed by one-way ANOVA analysis and Tukey’s test. Values were considered significant at p < 0.05.
Effects of viscothionin on AMPK activation
To inquire whether the inhibition of adipocyte differentiation by viscothionin is mediated by AMPK activation, 3T3-L1 cells were treated by 5 μM viscothionin for 8 days. Consistent with the increase in AMPK phosphorylation, the phosphorylation of acetyl-CoA carboxylase (ACC), a characterized phosphorylation target of AMPK, was also increased (Fig. 1b, c). However, AMPK phosphorylation inhibited the AKT activation and counteracted the glycogen synthase kinase 3β (GSK3β) inactivation (Fig. 1e). As shown in Fig. 1, viscothionin increased the phosphorylation of AMPK and ACC, while decreased the phosphorylation of AKT and GSK3β, suggesting that viscothionin activated AMPK, then inactivated AKT and activated GSK3β to inhibit adipocyte differentiation in 3T3-L1 cells during differentiation. To confirm the effect of AMPK activation by viscothionin, 3T3-L1 cells were treated with compound C, a pharmacological AMPK inhibitor. When the 3T3-L1 cells were pre-treated with compound C (20 μM), viscothionin-induced phosphorylation of AMPK and ACC were significantly reduced and phosphorylation of AKT and GSK3β was significantly increased (Fig. 1). These results indicate that viscothionin inhibited adipogenesis through AMPK activation.
Effects of viscothionin on adipocyte differentiation involved in AMPK activation
To clarify the effects of viscothionin on adipocyte differentiation involved in AMPK activation, we examined differentiation of viscothionin treated 3T3-L1 cells pre-treated with compound C. As shown in Fig. 2a, compound C significantly counteracted with inhibitory effect of viscothionin on adipocyte differentiation. Moreover, the effect on intracellular triglyceride levels in viscothionin-treated cells pre-treated with compound C was clearly counteracted as compared with viscothionin-treated cells (Fig. 2b). Viscothionin-treated 3T3-L1 cells pre-treated with compound C exhibited increased level of expression of sterol regulatory element binding protein-1 (SREBP-1) and fatty acid synthase (FAS), compared with viscothionin-treated cells (Fig. 2c, d). These results suggest that viscothionin-induced inhibition of adipogenesis in 3T3-L1 cells via AMPK activation.
Effect of viscothionin on food intake and bodyweight
Based on in vitro results, we performed in vivo experiments using HFD-induced obese mice. All the experimental mice showed no any symptoms of pathological condition or abnormalities during the experimental period. No significant differences among the groups in food consumption, except in control group (Fig. 3a) were observed. All groups had similar body weights at the beginning of the study (22.7 ± 1.1 g), but the HFD mice experienced significant weight gain (42.1 ± 1.8 g) compared with animals fed with the normal-diet (32.7 ± 1.7 g) throughout the study. The HFD groups treated with viscothionin at the dose of 1 mg/kg or 10 mg/kg gained less body weight (40.5 ± 1.5 g; 35.3 ± 1.1 g, respectively) in 3 weeks of treatment (Fig. 3b). The weight gain/feed ratio was calculated by dividing weight increase by food intake and was expressed as a percentage of control group diet. During the experimental period, the HFD mice showed a ratio of 266.1%, and those given viscothionin at 1 mg/kg or 10 mg/kg had ratio of 244.1% and 172%, respectively (Fig. 3c). During the 3-week viscothionin treatment period, the weight gain/feed ratio showed a significant decrement in the group given viscothionin at 10 mg/kg group, as compared with the HFD-fed group (Fig. 3d). Simvastatin (10 mg/kg) was used for positive control compared with 10 mg/kg viscothionin. These results indicate a potential anti-obesity effect of viscothionin through the weight gain/feed ratio.
Effects of viscothionin on serum lipid and abdominal visceral fat content

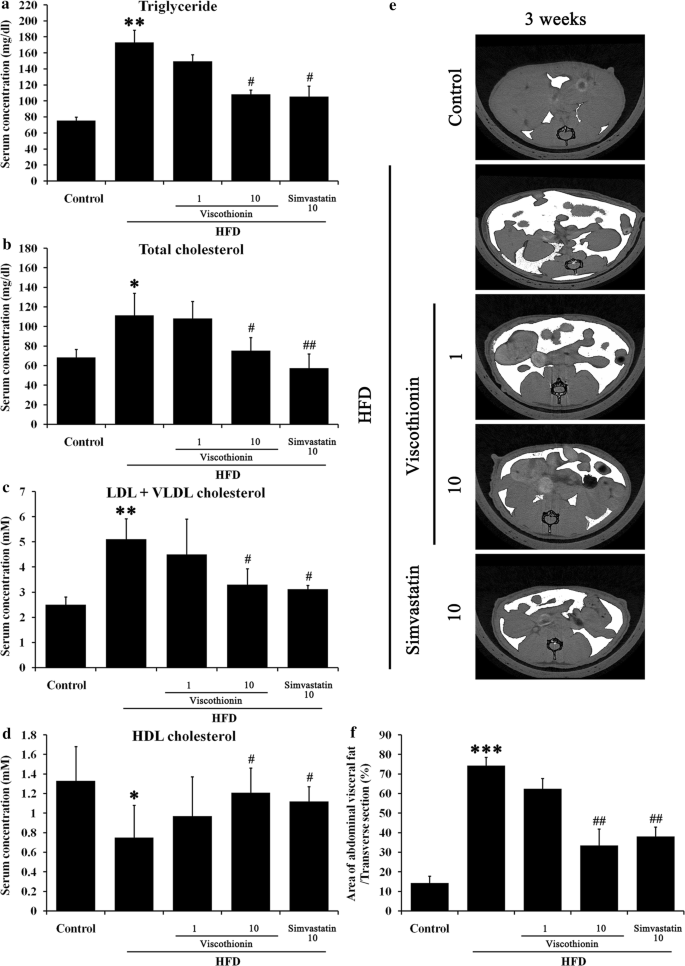

Three weeks of treatment with 10 mg/kg viscothionin significantly improved HFD-induced hypercholesterolemia. Serum concentrations of triglycerides and total cholesterol were significantly reduced by the treatment of viscothionin at 10 mg/kg in the HFD mice (Fig. 4a, b). Serum concentrations of LDL + VLDL cholesterol in mice fed 10 mg/kg viscothionin were significantly decreased by 36%, compared with the HFD mice (Fig. 4c). Serum concentrations of HDL cholesterol were also changed significantly in mice fed 10 mg/kg viscothionin as compared with the HFD mice (Fig. 4d).
To confirm abdominal visceral fat content in the obese animal model, we performed micro-CT and produced representative cross-sectional images (Fig. 4e) followed by quantification graph (Fig. 4f). The white area in the abdomen represents the intra-abdominal fat. After 3 weeks of viscothionin treatment, we found a significantly lower abdominal visceral fat content in the mice treated with 10 mg/kg viscothionin than in the HFD obese mice. These results confirmed that viscothionin exerts an anti-obesity effect in HFD-induced obesity animal model.
The present study was conducted to evaluate the anti-obesity effects of viscothionin, a potentially protective compound from the traditional herb, Korean mistletoe. Obesity is a major risk factor for metabolic disorders such as diabetes mellitus, hyperlipidemia and hypertension . The body fat distribution has a significant effect on disease morbidity. For example, abdominal adipose tissue decreases insulin sensitivity, while increasing the risk of atherosclerosis and cardiovascular disease [13, 14]. Excess dietary fat itself changes the cholesterol and triglyceride levels in plasma, and the tissues may contribute to obesity and related pathologies . Since body fat is synthesized from mature fat cells through differentiation and maturation of pre-adipocytes, several studies have focused on adipogenic signaling for developing anti-obesity substances . Pre-adipocytes differentiate and mature by answering hormones, including insulin through the expression of adipogenic genes such as SREBP-1 and FAS, and further generates a triglycerides . The pathogenesis of obesity includes failure of hormonal and enzymatic factors, such as hormone-sensitive lipase, low-density lipoprotein receptor, insulin, lipoprotein lipase, and growth hormone . Recently, number of strategies have been proposed as treatments for obesity, including diet and exercise therapy, including chemical drugs for lipid degradation. However, many such anti-obesity treatments exhibit adversary effects due to their ability to alter the control appetite and/or biochemistry of metabolism .
Korean mistletoe, a semi-parasitic plant, has been used as an alternative treatment material against several disorders, including cardiac vascular diseases, hypertension, cancer, arthritis, and epilepsy [8,9,10,11]. Recently, several studies have shown that Korean mistletoe has possible anticancer , and anti-obesity  effects. Based on these studies, in our previous research, we have identified a potential candidate molecule, viscothionin, from Korean mistletoe , and herein this study confirmed that viscothionin is an active molecule concerned with lipid metabolism.
In this study, we confirmed the effect of viscothionin on adipocyte differentiation by measuring lipid accumulation and several adipogenic genes and proteins associated with adipogenesis signal pathway. Possible mechanisms for reducing obesity involve decreasing the incorporation of triglycerides and cholesterol, increasing glucose and/or fatty acid oxidation, or increasing lipolysis . Adipocyte differentiation and fat accumulation are known to be associated with the development of obesity .
Results of preliminary experimental data indicated that viscothionin inhibited adipocyte differentiation in the 3T3-L1 cells and 5 μM concentration of viscothionin is effective at mitigating the accumulation of intracellular lipids. Previous studies have shown that AMPK activation directly inhibits ACC activity through phosphorylation, and indirectly inhibits ACC expression through inhibition of adipogenic signals, including AKT and GSK3β . In the present study, viscothionin increased the phosphorylation of AMPK and ACC, while decreased the phosphorylation of AKT and GSK3β in 3T3-L1 cells (Fig. 1). AMPK cascades have emerged as important targets for the treatment of obesity . Therefore, the anti-adipogenic effect of AMPK is recognized as a major effect of viscothionin in 3T3-L1 cells.
Furthermore, we confirmed the effect of viscothionin on inhibiting obesity in HFD-induced obesity animal model (Fig. 3b). Interestingly, these results were similar to those of mice treated with simvastatin, a commercially available anti-obesity agent. The anti-obesity effect of viscothionin demonstrated that the serum concentrations of LDL + VLDL cholesterol, triglycerides, and total cholesterol were significantly reduced (Fig. 4). Especially the serum concentrations of HDL cholesterol were improved compared with mice treated with simvastatin and were similar to control groups (Fig. 4d).
Additionally, the abdominal visceral fat content was significantly lowered in mice treated with viscothionin than in HFD obese mice (Fig. 4f). Overall, these results demonstrate an anti-obesity effect of viscothionin in an HFD-induced obesity animal model.
Availability of data and materials
All data used during the current study are available from the corresponding author on reasonable request.
Kopelman PG (2000) Obesity as a medical problem. Nature 404(6778):635–643
Ono M, Fujimori K (2011) Antiadipogenic effect of dietary apigenin through activation of AMPK in 3T3-L1 cells. J Agric Food Chem. 59(24):13346–13352
Bullo M, Casas-Agustench P, Amigo-Correig P, Aranceta J, Salas-Salvado J (2007) Inflammation, obesity and comorbidities: the role of diet. Public Health Nutr. 10(10a):1164–1172
Carling D, Mayer FV, Sanders MJ, Gamblin SJ (2011) AMP-activated protein kinase: nature's energy sensor. Nat Chem Biol. 7(8):512–518
Daval M, Foufelle F, Ferre P (2006) Functions of AMP-activated protein kinase in adipose tissue. J Physiol. 574(Pt 1):55–62
Gwon SY, Ahn JY, Chung CH, Moon B, Ha TY (2012) Lithospermum erythrorhizon suppresses high-fat diet-induced obesity, and acetylshikonin, a main compound of Lithospermum erythrorhizon, inhibits adipocyte differentiation. J Agric Food Chem. 60(36):9089–9096
Chen YY, Lee MH, Hsu CC, Wei CL, Tsai YC (2012) Methyl cinnamate inhibits adipocyte differentiation via activation of the CaMKK2-AMPK pathway in 3T3-L1 preadipocytes. J Agric Food Chem. 60(4):955–963
Kienle GS, Kiene H (2010) Review article: Influence of Viscum album L (European mistletoe) extracts on quality of life in cancer patients: a systematic review of controlled clinical studies. Integr Cancer Ther. 9(2):142–157
Ostermann T, Bussing A (2012) Retrolective studies on the survival of cancer patients treated with mistletoe extracts: a meta-analysis. Explore. 8(5):277–281
Pearl PL, Drillings IM, Conry JA (2011) Herbs in epilepsy: evidence for efficacy, toxicity, and interactions. Semin Pediatr Neurol. 18(3):203–208
Khil LY, Kim W, Lyu S, Park WB, Yoon JW, Jun HS (2007) Mechanisms involved in Korean mistletoe lectin-induced apoptosis of cancer cells. World J Gastroenterol. 13(20):2811–2818
Kim S, Lee D, Kim JK, Kim JH, Park JH, Lee JW et al (2014) Viscothionin isolated from Korean mistletoe improves nonalcoholic fatty liver disease via the activation of adenosine monophosphate-activated protein kinase. J Agric Food Chem. 62(49):11876–11883
Despres JP (1998) The insulin resistance-dyslipidemic syndrome of visceral obesity: effect on patients' risk. Obes Res. 6(Suppl 1):8s–17s
Nicklas BJ, Penninx BW, Ryan AS, Berman DM, Lynch NA, Dennis KE (2003) Visceral adipose tissue cutoffs associated with metabolic risk factors for coronary heart disease in women. Diabetes Care 26(5):1413–1420
McNamara DJ (2000) Dietary cholesterol and atherosclerosis. Biochim Biophys Acta. 1529(1–3):310–320
Chang E, Kim CY (2019) Natural products and obesity: a focus on the regulation of mitotic clonal expansion during adipogenesis. Molecules 24(6):1157
Sorisky A (1999) From preadipocyte to adipocyte: differentiation-directed signals of insulin from the cell surface to the nucleus. Crit Rev Clin Lab Sci. 36(1):1–34
Hill JO, Peters JC, Wyatt HR (2007) The role of public policy in treating the epidemic of global obesity. Clin Pharmacol Ther. 81(5):772–775
Varady KA, Jones PJ (2005) Combination diet and exercise interventions for the treatment of dyslipidemia: an effective preliminary strategy to lower cholesterol levels? J Nutr. 135(8):1829–1835
Jung HY, Kim YH, Kim IB, Jeong JS, Lee JH, Do MS et al (2013) The Korean Mistletoe (Viscum album coloratum) Extract Has an Antiobesity Effect and Protects against Hepatic Steatosis in Mice with High-Fat Diet-Induced Obesity. Evid Based Complement Alternat Med. 2013:168207
Hwang JT, Park IJ, Shin JI, Lee YK, Lee SK, Baik HW et al (2005) Genistein, EGCG, and capsaicin inhibit adipocyte differentiation process via activating AMP-activated protein kinase. Biochem Biophys Res Commun. 338(2):694–699
Fryer LG, Carling D (2005) AMP-activated protein kinase and the metabolic syndrome. Biochem Soc Trans. 33(Pt 2):362–366
This research was supported by “Research Base Construction Fund Support Program” funded by Chonbuk National University in 2019.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Kim, S., Ahn, SH., Park, JH. et al. Anti-adipogenic effects of viscothionin in 3T3-L1 adipocytes and high fat diet induced obesity mice. Appl Biol Chem 63, 9 (2020). https://doi.org/10.1186/s13765-020-0489-2
